ลวดสลิง Bridon Dyform 18 PI

Name: ลวดสลิง Bridon Dyform 18 PI - ไทยมุ้ย THAIMUI
Brand: Bridon
Price: 100.00 THB
Availability: InStock

thaimui_admin

2 years ago

ลวดสลิง Bridon Dyform 18 PI

ลวดสลิงไส้เหล็ก
ลวดสลิงเสริมไส้พลาสติก (Plastic Impregnated Wire Rope)
ลวดสลิงสำหรับเครน (Crane)
ลวดสลิงสำหรับรถเครน (Mobile Crane)
ลวดสลิงสำหรับเครนโรงงาน/อุตสาหกรรม (Overhead Crane)
ลวดสลิงสำหรับทาวเวอร์เครน (Tower Crane)
ลวดสลิงสำหรับเครนนอกชายฝั่ง (Offshore Pedestal)

Bridon products provide solutions in markets where there can be no compromise over product performance and integrity, such as in construction, mining, oil & gas extraction, telecommunications and other specialized areas of engineering.

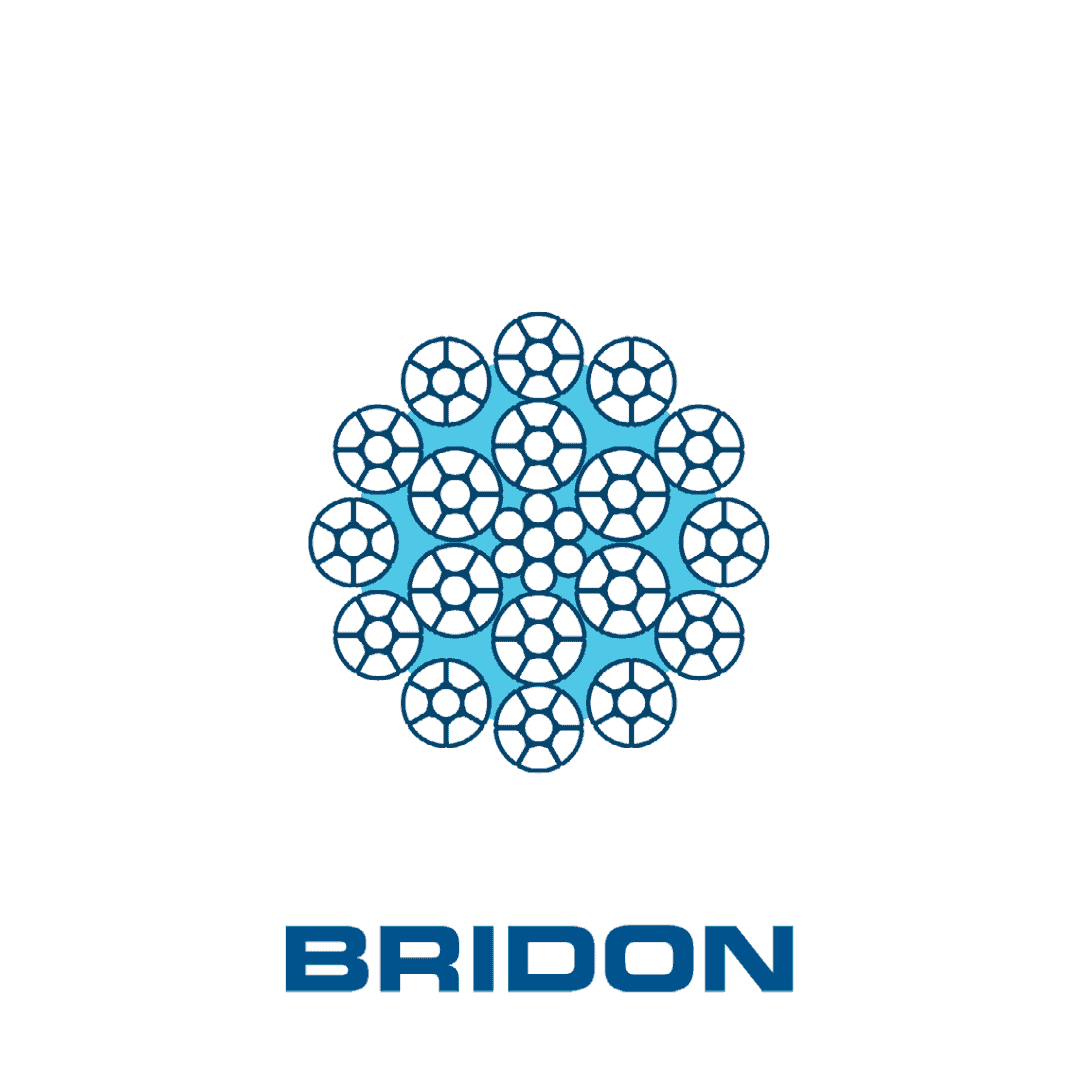

Dyform 18 PI is a high performance compacted rotational resistant rope which
incorporates a plastic layer between the inner and outer part of the rope.
– Good wear characteristics due to its smooth exterior profile
– Plastic layer improves bending fatigue performance
– Robust and stable rope construction
– Diameter stability, requirement of multi layered spooling


Rope Diameter	Weight	Min. Breaking Force (kN)
Rope Diameter	Weight	1960 N/mm2		2160 N/mm2
mm	kg/100m	kN	tonnes	kN	tonnes
6	17.5	30.7	3.13	34	3.47
7	22.7	39.8	1.06	44.1	4.5
8	30.8	54.2	5.53	60	6.12
9	38.4	67.6	6.89	74.8	7.63
10	48	84.3	8.6	93.3	9.51
11	59.7	105	10.7	116	11.8
12	68.6	121	12.3	133	13.6
13	83.4	147	15	162	16.5
14	94.9	167	17	185	18.9
15	109	191	19.5	211	21.5
16	125	219	22.3	243	24.8
17	141	248	25.3	274	27.9
18	158	278	28.3	308	31.4
19	173	304	31	337	34.4
20	194	335	34.2	376	38.3
22	233	405	41.3	454	46.3
24	279	482	49.1	540	55.1
25	303	523	53.3	587	59.9
28	382	662	67.5	743	75.8
30	436	756	77.1	848	86.5
32	501	859	87.6	964	98.3

Reference: Bridon Dyform 18 PI
