ลวดสลิง Bridon Dyform 8 PI

Name: ลวดสลิง Bridon Dyform 8 PI - ไทยมุ้ย THAIMUI
Brand: Bridon
Price: 100.00 THB
Availability: InStock

thaimui_admin

2 years ago

ลวดสลิง Bridon Dyform 8 PI

ลวดสลิงไส้เหล็ก
ลวดสลิงรีดกลม (Compacted Wire Rope)
ลวดสลิงเสริมไส้พลาสติก (Plastic Impregnated Wire Rope)
ลวดสลิงสำหรับเครน (Crane)
ลวดสลิงสำหรับรถเครน (Mobile Crane)
ลวดสลิงสำหรับเครนโรงงาน/อุตสาหกรรม (Overhead Crane)
ลวดสลิงสำหรับทาวเวอร์เครน (Tower Crane)
ลวดสลิงสำหรับคอนเทนเนอร์เครน (Container Crane)
ลวดสลิงสำหรับเครนนอกชายฝั่ง (Offshore Pedestal)
ลวดสลิงสำหรับเครนหน้าท่า (Dockside Crane)

Bridon products provide solutions in markets where there can be no compromise over product performance and integrity, such as in construction, mining, oil & gas extraction, telecommunications and other specialized areas of engineering.

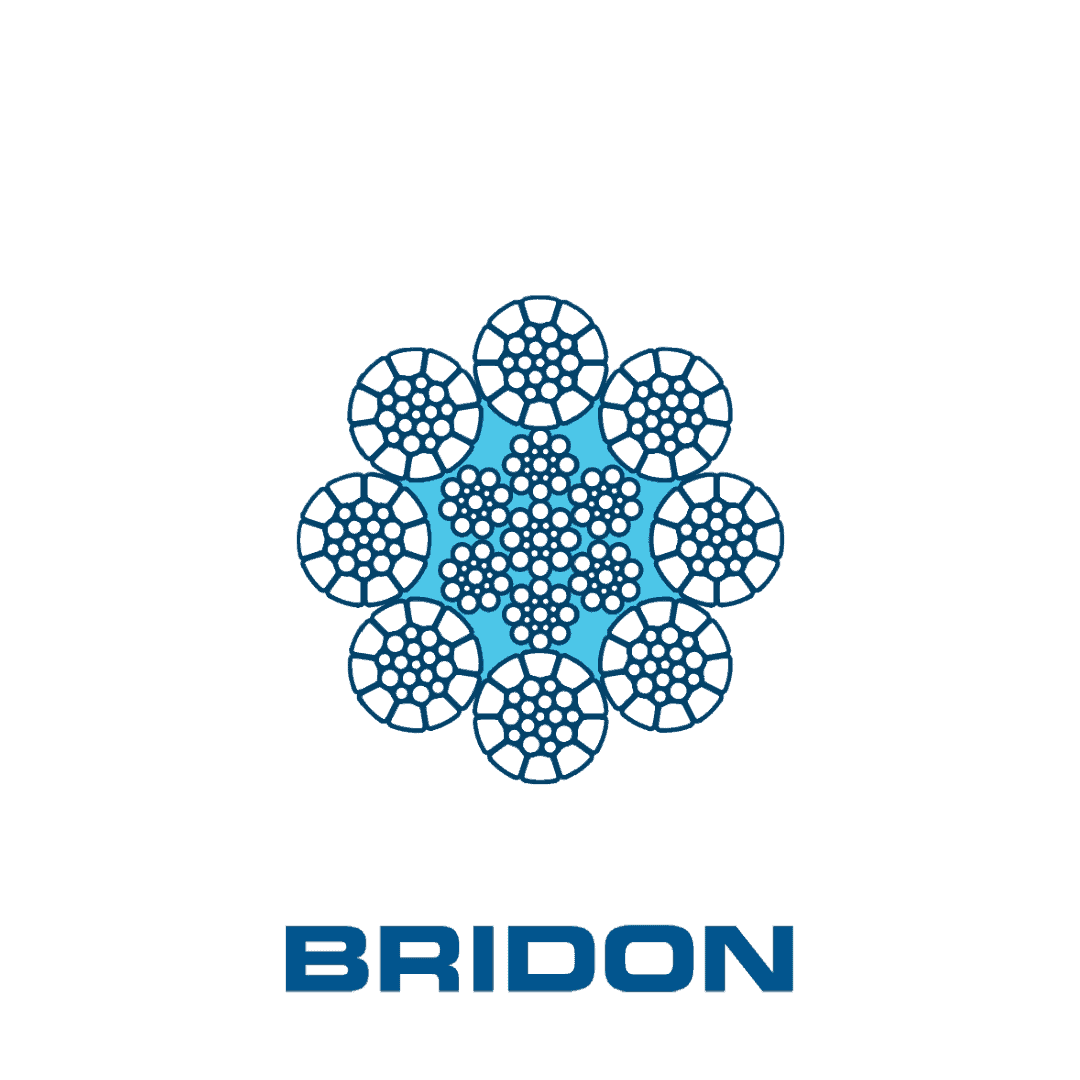

Dyform 8 PI is a high performance compacted single layer constructed rope which incorporates a plastic layer between the 8 outer strands and the rope core for cranes and industrial applications including mobile, crawler and tower cranes.
– Improved bending fatigue performance
– Stable rope construction
– Diameter stability, requirement of multi-layered spooling


Diameter		Nominal length mass		Minimum Breaking Force
Diameter		Nominal length mass		EIP/1960			EEIP/2160
mm	inch	kg/m	lb/ft	kN	Tons (short)	Tons (metric)	kN	Tons (short)	Tons (metric)
	3/8	0.427	0.287	86.2	9.69	8.79	90.1	10.1	9.19
10.0		0.471	0.316	89.2	10.00	9.10	93.2	10.5	9.5
11.0		0.57	0.383	110	12.4	11.2	115	12.9	11.7
	7/16	0.582	0.391	110	12.4	11.2	115	12.9	11.7
12.0		0.678	0.456	128	14.4	13.1	134	15.1	13.7
	1/2	0.76	0.510	144	16.2	14.7	150	16.9	15.3
13.0		0.796	0.535	150	16.9	15.3	157	17.6	16
14.0		0.923	0.620	174	19.6	17.7	182	20.5	18.6
	9/16	0.961	0.646	181	20.3	18.5	189	21.2	19.3
15.0		1.06	0.712	198	22.3	20.2	207	23.3	21.1
	5/8	1.19	0.798	226	25.4	23.0	236	26.5	24.1
16.0		1.21	0.810	226	25.4	23.0	236	26.5	24.1
17.0		1.36	0.915	255	28.7	26.0	267	30	27.2
18.0		1.53	1.03	286	32.1	29.2	299	33.6	30.5
19.0		1.7	1.14	318	35.7	32.4	333	37.4	34
	3/4	1.71	1.15	318	35.7	32.4	333	37.4	34
20.0		1.88	1.27	353	39.7	36.0	369	41.5	37.6
22.0		2.28	1.53	427	48.0	43.5	446	50.1	45.5
	7/8	2.33	1.56	427	48.0	43.5	446	50.1	45.5
24.0		2.71	1.82	508	57.1	51.8	531	59.7	54.1
	1	3.04	2.04	569	64.0	58.0	595	66.9	60.7
26.0		3.18	2.14	596	67.0	60.8	623	70	63.5
28.0		3.69	2.48	691	77.7	70.5	723	81.3	73.7
	1 1/8	3.85	2.58	720	80.9	73.4	753	84.6	76.8
30.0		4.24	2.85	794	89.2	81.0	830	93.3	84.6
	1 1/4	4.75	3.19	903	102	92.1	944	106	96.3
32.0		4.82	3.24	903	102	92.1	944	106	96.3
34.0		5.44	3.66	1020	115	104	1070	120	109
	1 3/8	5.75	3.86	1080	121	110	1130	127	115
36.0		6.1	4.10	1138	128	116	1200	135	122
38.0		6.8	4.57	1270	143	130	1330	149	136
	1 1/2	6.84	4.59	1270	143	130	1330	149	136
40.0		7.54	5.06	1410	158	144	1480	166	151
	1 5/8	8.02	5.39	1500	169	153	1570	176	160
42.0		8.31	5.58	1560	175	159	1630	183	166
44.0		9.12	6.13	1710	192	174	1790	201	183
	1 3/4	9.31	6.25	1710	192	174	1790	201	183
46.0		9.97	6.70	1870	210	191	1950	219	199
	1 7/8	10.7	7.18	2030	228	207	2130	239	217
48.0		10.9	7.29	2030	228	207	2130	239	217
50.0		11.8	7.91	2080	248	225	2310	260	236
52.0		12.0	8.09	2260	254	230	-	-	-
54.0	2 1/2	13.0	8.72	2430	273	248	-	-	-
57.2	2 1/4	14.5	9.77	2730	307	278	-	-	-
63.5	2 1/2	17.9	12.1	3370	379	344	-	-	-
69.9	2 3/4	21.7	14.6	4080	459	416	-	-	-
73.0	2 7/8	23.7	15.9	4450	500	454	-	-	-
76.2	3	25.8	17.4	4820	542	492	-	-	-

Reference: Bridon Dyform 8 PI
