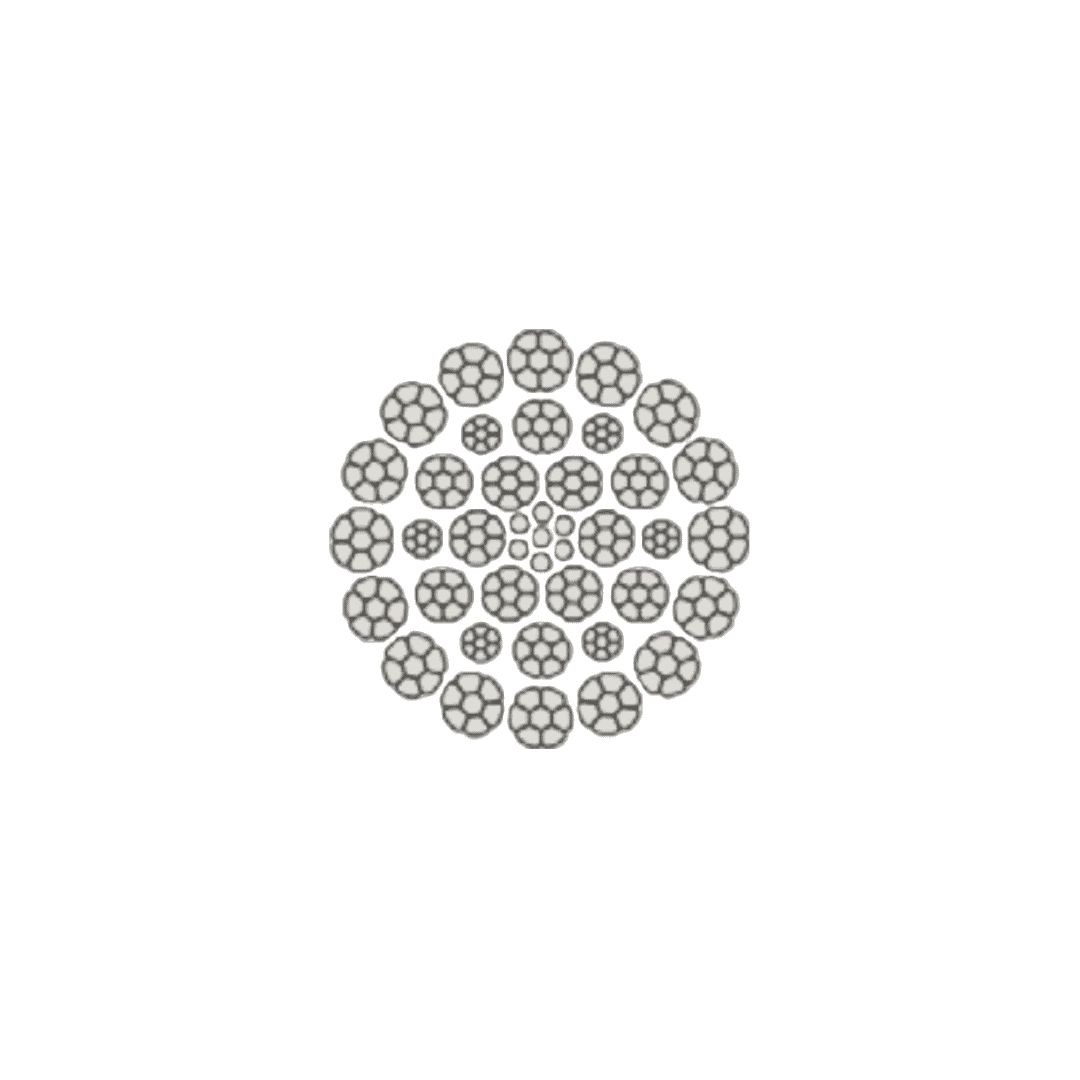

ลวดสลิง 35×7
- ลวดสลิงไส้เหล็ก
- ลวดสลิงรีดกลม (Compacted Wire Rope)
- ลวดสลิงสำหรับรถเครน (Mobile Crane)
- ลวดสลิงสำหรับเครนนอกชายฝั่ง (Offshore Pedestal)
| Rope Diameter | Weight | Min. Breaking Force |
|---|
| 1570 N/mm2 | 1770 N/mm2 | 1960 N/mm2 |
|---|
| mm | inch | kg/100m | kN | kN | kN |
|---|
| 13 | | 81.3 | 123 | 144 | 155 |
| 14 | | 94.3 | 142 | 180 | 192 |
| 16 | (5/8") | 123 | 186 | 233 | 252 |
| 18 | | 156 | 235 | 300 | 321 |
| 19 | (3/4") | 174 | 262 | 331 | 358 |
| 20 | | 192 | 290 | 372 | 399 |
| 22 | | 233 | 351 | 444 | 484 |
| (7/8") | 237 | 358 | 453 | 490 |
| 24 | | 277 | 418 | 531 | 572 |
| (1") | 310 | 468 | 591 | 640 |
| 26 | | 325 | 490 | 621 | 661 |
| 28 | | 377 | 569 | 720 | 788 |
| (1 1/8") | 393 | 593 | 748 | 810 |
| 32 | (1 1/4") | 492 | 734 | 944 | 1035 |
| 35 | (1 3/8") | 589 | 884 | 1125 | 1216 |
| 38 | (1 1/2") | 694 | 1048 | 1326 | 1437 |
| 40 | | 770 | 1161 | 1477 | 1588 |
| | | | | |
