ลวดสลิง Bridon Dyform 34LR PI

Endurance 34LR PI

ลวดสลิง Bridon Dyform 34LR PI

Bridon products provide solutions in markets where there can be no compromise over product performance and integrity, such as in construction, mining, oil & gas extraction, telecommunications and other specialized areas of engineering.

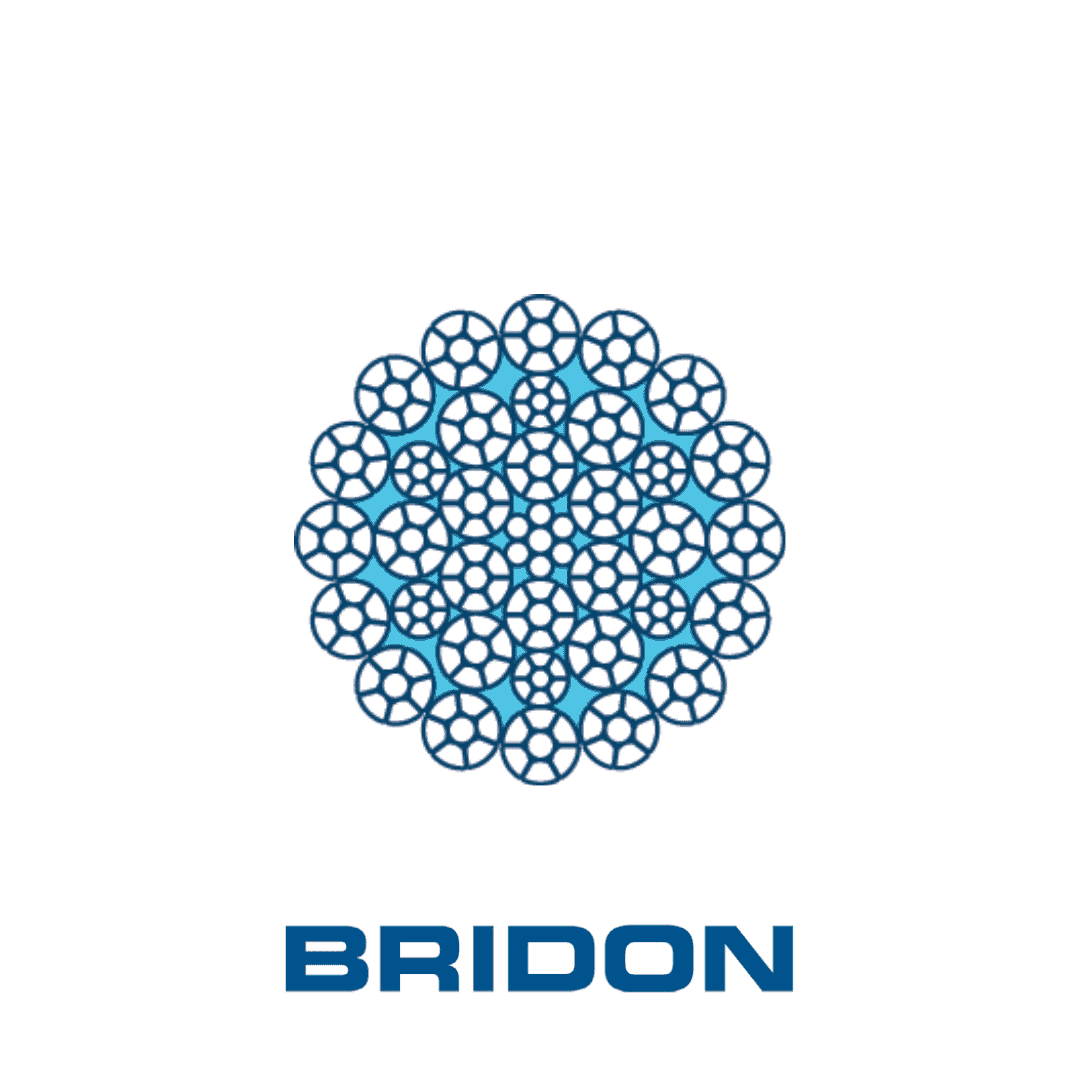

The Dyform 34 LR PI is a high performance compacted low rotational rope
that combines varying multistrand rope designs to achieve excellent rotation
resistance in offshore operations. It incorporates a plastic layer (PI) between
the inner and outer part of the rope.
– Stable rope construction
– Higher bending fatigue performance



DiameterNominal length massMinimum Breaking Force
EIP/1960EEIP/2160
mminchkg/mlb/ftkNTons
(short)
Tons
(metric)
kNTons
(short)
Tons
(metric)
3/80.4540.305829.28.36869.78.77
10.00.50.33690.810.29.2595.310.79.71
11.00.610.4110912.311.111512.911.7
7/160.610.4111112.511.311713.211.9
12.00.720.48413014.613.213715.413.9
1/20.8080.54314616.414.815317.215.6
13.00.850.57115317.215.616118.116.4
14.00.980.65917920.118.219121.519.5
9/161.020.68718520.818.820122.620.5
15.01.130.75920422.920.821424.121.8
5/81.280.8623226.123.625128.225.6
16.01.280.8623226.123.625128.225.6
17.01.450.97426229.426.727530.928
18.01.621.0929833.530.431935.932.5
19.01.811.2233137.233.73564036.3
3/41.811.2233137.233.73564036.3
20.02.001.3437041.637.739744.640.5
21.02.211.494004540.742047.242.8
22.02.421.6344249.745.148254.249.1
7/82.421.6344850.445.748754.749.6
23.02.651.784805448.950456.751.3
24.02.881.9452859.353.85696458
25.03.132.156863.857.959566.960.6
13.232.1758665.959.76237063.5
26.03.382.2761869.56366074.267.3
27.03.652.4566274.467.56947870.7
28.03.922.637128072.675885.277.3
1 1/84.092.7574383.575.777987.679.4
29.04.212.8376485.977.98019081.6
30.04.503.0282392.583.985796.387.3
1 1/45.123.44919103.393.71008113.3102.8
32.05.123.44919103.393.71008113.3102.8
34.05.873.9410501181071151129.4117.3
1 3/86.184.151100123.61121214136.5123.8
35.06.224.181110124.81131214136.5123.8
36.06.584.421170131.51191287144.7131.2
38.07.334.931310147.21331444162.3147.2
1 1/27.364.951310147.21331444162.3147.2
40.08.125.4614501631471590178.7162.1
1 5/88.665.821550174.21581695190.5172.8
42.08.956.011600179.81631758197.6179.2
44.09.836.611750196.71781925216.4196.2
46.010.77.191920215.8195---
1 7/811.57.732050230.4209---
48.011.77.862090234.9213---
50.012.78.532270255.2231---
50.813.18.82340263238---

Reference: Bridon Dyform 34LR PI
