ลวดสลิง Bridon Dyform Bristar 8

Dyform 8 Bristar

ลวดสลิง Bridon Dyform Bristar 8

Bridon products provide solutions in markets where there can be no compromise over product performance and integrity, such as in construction, mining, oil & gas extraction, telecommunications and other specialized areas of engineering.

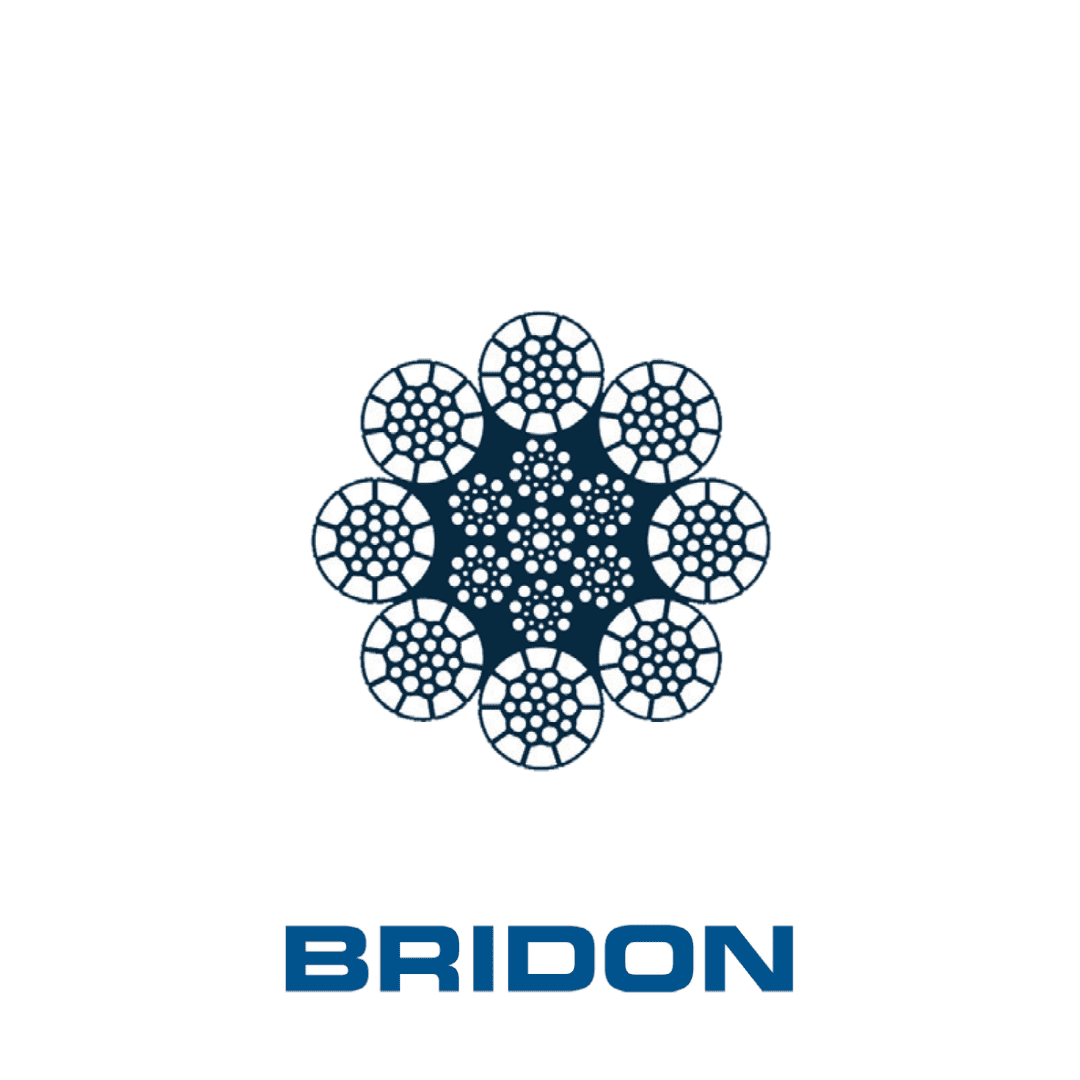

Dyform Bristar 8 is a high performance compacted single layer constructed
rope which incorporates an engineered extruded plastic profile between
the 8 outer strands and the rope core.
– Outstanding bending fatigue performance
– Very stable rope construction
– Improved support of outer strands in service

DiameterNominal length massMinimum Breaking Force
EIP/1960EEIP/2160
mminchkg/mlb/ftkNTons
(short)
Tons
(metric)
kNTons
(short)
Tons
(metric)
3/80.4270.28786.29.698.7990.110.19.19
10.00.4710.31689.210.009.1093.210.59.5
11.00.570.38311012.411.211512.911.7
7/160.5820.39111012.411.211512.911.7
12.00.6780.45612814.413.113415.113.7
1/20.760.51014416.214.715016.915.3
13.00.7960.53515016.915.315717.616
14.00.9230.62017419.617.718220.518.6
9/160.9610.64618120.318.518921.219.3
15.01.060.71219822.320.220723.321.1
5/81.190.79822625.423.023626.524.1
16.01.210.81022625.423.023626.524.1
17.01.360.91525528.726.02673027.2
18.01.531.0328632.129.229933.630.5
19.01.71.1431835.732.433337.434
3/41.711.1531835.732.433337.434
20.01.881.2735339.736.036941.537.6
22.02.281.5342748.043.544650.145.5
7/82.331.5642748.043.544650.145.5
24.02.711.8250857.151.853159.754.1
13.042.0456964.058.059566.960.7
26.03.182.1459667.060.86237063.5
28.03.692.4869177.770.572381.373.7
1 1/83.852.5872080.973.475384.676.8
30.04.242.8579489.281.083093.384.6
1 1/44.753.1990310292.194410696.3
32.04.823.2490310292.194410696.3
34.05.443.6610201151041070120109
1 3/85.753.8610801211101130127115
36.06.14.1011381281161200135122
38.06.84.5712701431301330149136
1 1/26.844.5912701431301330149136
40.07.545.0614101581441480166151
1 5/88.025.3915001691531570176160
42.08.315.5815601751591630183166
44.09.126.1317101921741790201183
1 3/49.316.2517101921741790201183
46.09.976.7018702101911950219199
1 7/810.77.1820302282072130239217
48.010.97.2920302282072130239217
50.011.87.9120802482252310260236
52.012.08.092260254230---
54.02 1/213.08.722430273248---
57.22 1/414.59.772730307278---
63.52 1/217.912.13370379344---
69.92 3/421.714.64080459416---
73.02 7/823.715.94450500454---
76.2325.817.44820542492---

Reference: Bridon Dyform Bristar 8
