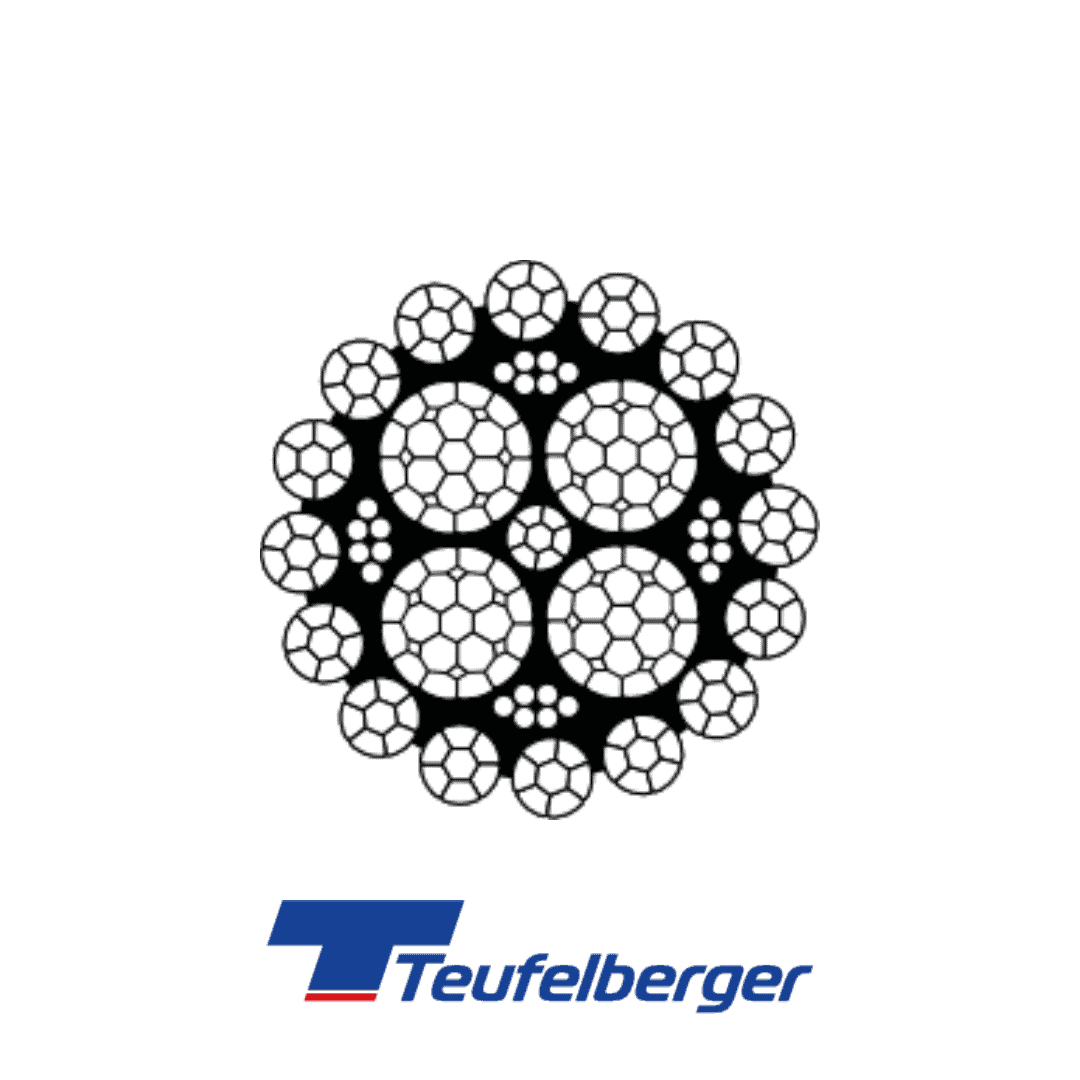

ลวดสลิง Teufelberger Evolution TK17

Name: ลวดสลิง Teufelberger Evolution TK17 - ไทยมุ้ย THAIMUI
Brand: Teufelberger
Price: 100.00 THB
Availability: InStock

thaimui_admin

2 ปี ago

ลวดสลิง Teufelberger Evolution TK17

ลวดสลิงไส้เหล็ก
ลวดสลิงสำหรับเครน (Crane)
ลวดสลิงสำหรับรถเครน (Mobile Crane)
ลวดสลิงสำหรับเครนโรงงาน/อุตสาหกรรม (Overhead Crane)
ลวดสลิงสำหรับทาวเวอร์เครน (Tower Crane)
ลวดสลิงสำหรับคอนเทนเนอร์เครน (Container Crane)
ลวดสลิงสำหรับเครนนอกชายฝั่ง (Offshore Pedestal)
ลวดสลิงสำหรับเครนหน้าท่า (Dockside Crane)

TEUFELBERGER is built on three solid pillars that form the basis for the company’s success: Steel wire ropes, fiber ropes, and plastics extrusion. In the 225 years of company history, we have continuously broadened our expert knowledge in the development and production of steel wire and fiber ropes and plastic strapping. Drawing on an in-depth understanding of our customers’ needs and our experience and high level of technological expertise, we develop optimum solutions for our customers

EVOLUTION TK17 features – due to its structure – optimum all-round characteristics combined with extremely high breaking forces.
EVOLUTION TK17 was designed specifically for use in challenging multilayer spooling conditions, especially also for small drum diameters.

Outstanding spooling efficiency: because of extremely tight diameter tolerances
Well-established in the market: OEM approved for years
Ideal in multilayer operations: rope-construction provides excellent service life especially for small D/d ratios
Flexibility and efficency: ungalvanized wire material


Construction	Diameter		Nominal length mass		Minimum Breaking Force
Construction	Diameter		Nominal length mass		1770 N/mm2		1960 N/mm2		2160 N/mm2
	mm	inch	kg/m	lbs/ft	kN	lbs	kN	lbs	kN	lbs
16xK6-IWRC(K)	10		0.48	0.32	82	18434	94	21132	98	22031
	11		0.61	0.41	100	22481	111	24954	118	26527
	12		0.72	0.48	120	26977	133	29900	144	32372
	13		0.86	0.58	141	31698	156	35070	170	38218
	14	9/16	0.97	0.65	163	36644	181	40690	197	44287
	15		1.11	0.75	188	42264	208	46760	226	50807
	16	5/8	1.26	0.85	214	48109	236	53055	257	57776
	17		1.42	0.95	241	54179	267	60024	290	65195
	18		1.61	1.08	271	60923	300	67443	325	73063
	19	3/4	1.78	1.2	302	67892	334	75086	362	81381
	20		2.02	1.36	338	75985	374	84079	401	90148
	21		2.23	1.5	373	83854	413	92846	444	99815
	22	7/8	2.44	1.64	408	91722	452	101614	487	109482
	23		2.62	1.76	445	100040	493	110831	533	119823
	24		2.83	1.9	483	108583	535	120273	580	130389
	25		3.11	2.09	524	117800	580	130389	624	140281
	25.4	1	3.2	2.15	527	118474	584	131288	638	143428
	26		3.34	2.24	567	127467	627	140955	675	151746
	27		3.58	2.41	609	136909	674	151521	725	162986
	28		3.89	2.61	655	147250	725	162986	780	175351
	28.57	1 1/8	3.91	2.63	659	148149	730	164111	785	176475
	29		4.14	2.78	701	157591	777	174677	835	187715
	30		4.49	3.02	749	168382	830	186591	893	200754
16xK7-IWRC(K)	32	1 1/4	4.98	3.35	852	191537	944	212220	1016	228406
	34		5.62	3.78	958	215367	1061	238522	1141	256507

Reference: Teufelberger Evolution TK17
