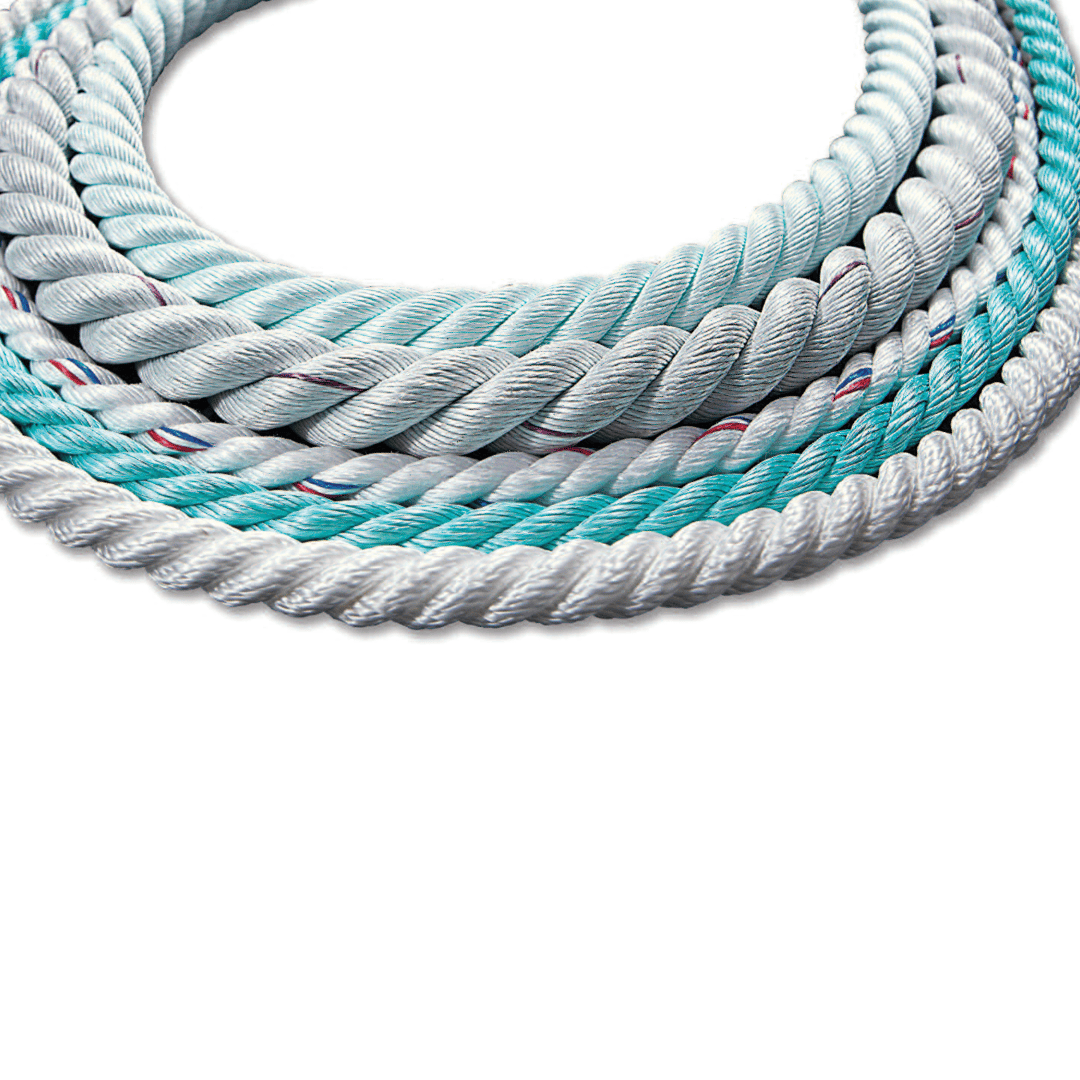

เชือก PP Rope 3 and 4 Strand

Name: เชือก PP Rope 3 and 4 Strand - ไทยมุ้ย THMUI - ผู้เชี่ยวชาญลวดสลิง อุปกรณ์ยกหิ้วมาตรฐานสากล ผู้นำธุรกิจ ลวดสลิง และ อุปกรณ์ยกหิ้ว
Brand: THAIMUI
Price: 100.00 THB
Availability: InStock

Categories: เชือก (Fiber Rope), THAIMUI

เชือก PP Rope 3 and 4 Strand

รายละเอียด และ ขนาด

Polypropylene
± 5% tolerance according to ISO 2307


Diameter	PP		ENDUWIN		NYLON		PP Multi		PS		Leaded Rope		KU		Manila
Diameter	Weight	MBL	Weight	MBL	Weight	MBL	Weight	MBL	Weight	MBL	Weight	MBL	Weight	MBL	Weight	MBL
mm	kg/200m	t	kg/200m	t	kg/200m	t	kg/200m	t	kg/200m	t	kg/200m	t	kg/200m	t	kg/200m	t
4	1.5	0.21	1.5	0.23	1.95	0.33	1,5	0.12	-	-	-	-	2,0	0.15	-	-
5	2.3	0.32	2.3	0.35	3	0.6	2.3	0.32	-	-	3.5	0.2	3	0.23	-	-
6	3.5	0.6	3.5	0.65	4.5	1.2	3.5	0.55	5.5	0.7	5,3	0.28	4.5	0.33	5	0.29
7	4.8	0.75	4.8	0.86	-	-	-	-	7.5	0.9	-	-	-	-	7	0.37
8	6.2	1.06	6.2	1.27	7.8	1.7	6.2	0.96	9.6	1.3	9.5	0.47	7.8	0.6	9.5	0.55
9	7.8	1.19	7.8	1.52	9.8	1.9	7.8	1.19	12.3	1,5	12	0.59	10	0.7	10.1	0.62
10	9.6	1.56	9.6	1.79	12.1	2.4	9.6	1.43	15.2	1.9	15	0.72	12	0.95	12.8	0.71
12	13.9	2.21	13.9	2.52	17.6	3.4	13.9	2.03	22	2.8	21	1.01	17.6	1.37	19	1.07
14	18.8	3.05	18.8	3.36	23.9	4.5	18.8	2.79	29.6	3.8	28.5	1.34	24	1.83	26.3	1.46
16	24.2	3.78	24.2	4.26	30.8	5.8	24.2	3.5	39	5	37.5	1.72	31	2.34	33.8	2.03
18	30.8	4.82	30.8	5.26	38.7	7.2	30.8	4.45	49	6.2	48	2.14	39	2.92	41.3	2.44
20	38	5.8	38	6.3	48	9.5	38	5.37	61	7.4	59	2.61	48	3.55	53	3.25
22	46	6.9	46	7.7	57.9	12.2	46	6.5	74	8.6	71	3.11	59	4.24	63.8	3.66
24	54.7	8.1	54.7	9.1	69.5	14.3	54.7	7.6	87	10	82.5	3.66	70	5	75	4.57
26	63.8	9.4	63.8	10.5	81.3	15.8	63.8	8.8	103	12	99	4.24	82	5.8	94	5.33
28	73.6	10.7	73.6	11.9	95.3	17.8	73.6	10.1	119	15	115	4.87	95	6.64	106	6.1
30	85.2	12.2	85.2	13.1	108	20	85.2	11.4	136	17	127.5	5.54	108	7.6	125	6.9
32	96.7	13.5	96.7	14.8	123	22	96.7	12.8	155	19.5	142.5	6.3	124	8.51	140	7.9
34	110	14.4	110	16.6	139	24.5	110	14.4	175	21	163	7	140	9.53	159	8.8
36	122	16.9	122	18.6	155	28	122	16.1	196	24	172.5	7.8	157	10.6	178	9.65
38	135	17.7	135	20.4	174	31	135	17.7	221	26	203	8.6	175	11.7	199	10.8
40	152	20.5	152	22.2	191	34	152	19.4	243	30	225	9.7	194	12.9	220	12
42	167	21.4	167	24.6	213	37	167	21.4	268	33	248	10.7	213	14.1	243	13.1
45	191	24.9	191	27.8	244	42	191	24.4	308	38	285	12.5	245	16.1	278	15
48	218	28.6	218	31.1	277	47	218	27.2	350	43	324	13.8	278	18	317	16.83
50	236	29.3	236	33.6	302	50	236	29.3	380	47	352	14.7	302	19.5	345	18.22
52	256	33.1	256	36.2	328	55	256	31.5	410	52	381	15.8	322	21.1	-	-
55	286	37	286	39.9	367	60	286	34.9	458	57	426	17.6	355	23.3	-	-
60	340	43.2	340	47	438	70	340	41.2	546	71	507	20.7	432	27.4	-	-
65	392	50.7	392	54.9	513	81	392	48.1	640	82	595	24	508	31.8	-	-
70	455	58.8	455	63.8	596	93	455	55.8	741	93	691	27.6	589	36.5	-	-
75	522	67.5	522	72.8	683	106	522	63.5	853	105	793	31.3	675	42	-	-
80	594	75.6	594	82.9	777	122	594	72	970	124	-	-	767	46.8	-	-
