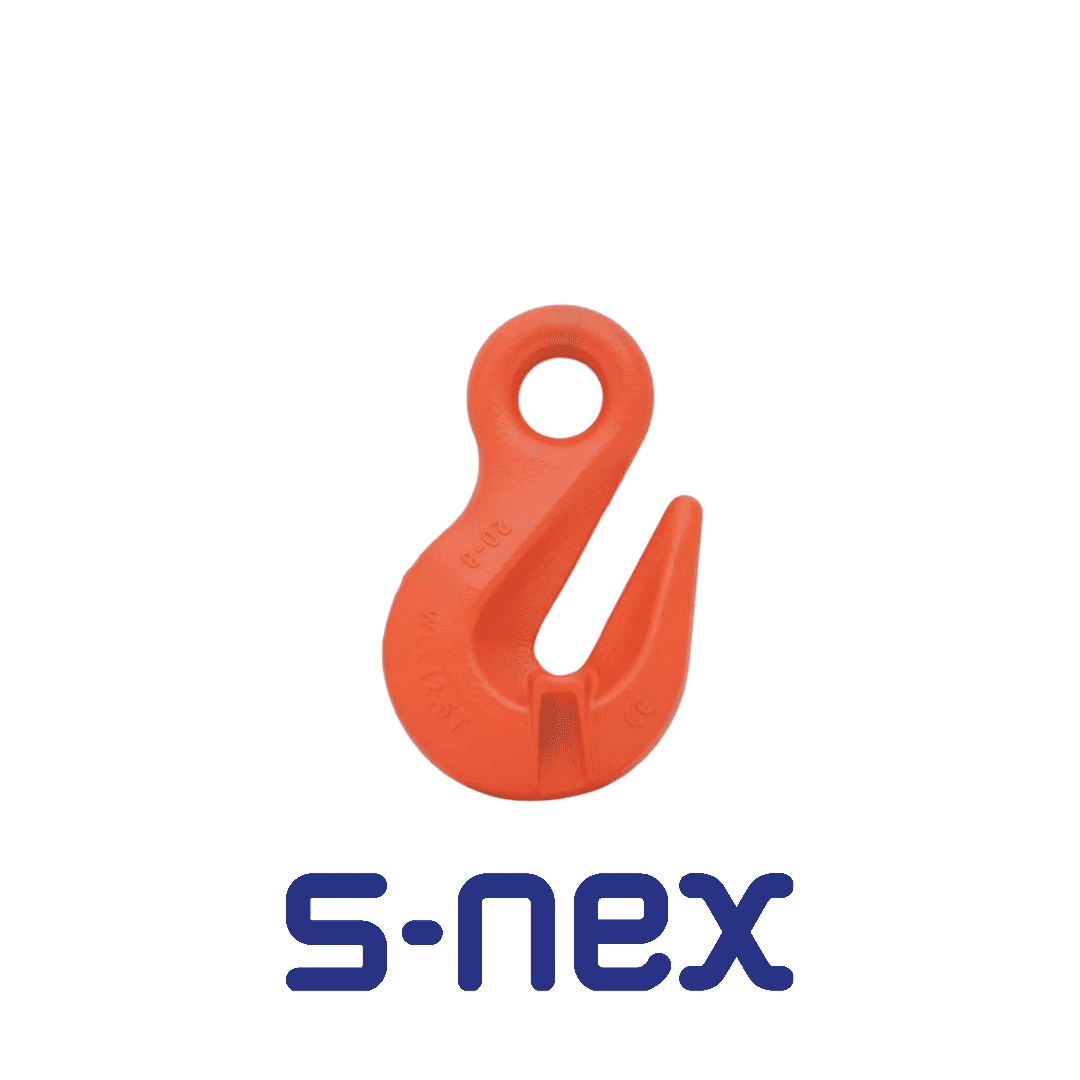

ตะขอ S-NEX Eye Shortening Grab Hook Grade80

ตะขอ S-NEX Eye Shortening Grab Hook Grade80

Categories: ตะขอ (Hook), S-NEX

ตะขอ S-NEX Eye Shortening Grab Hook Grade80

รายละเอียด และ ขนาด

Material: Forged super alloy steel
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Breakage test
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Suitable for EN818-2 G80 chain

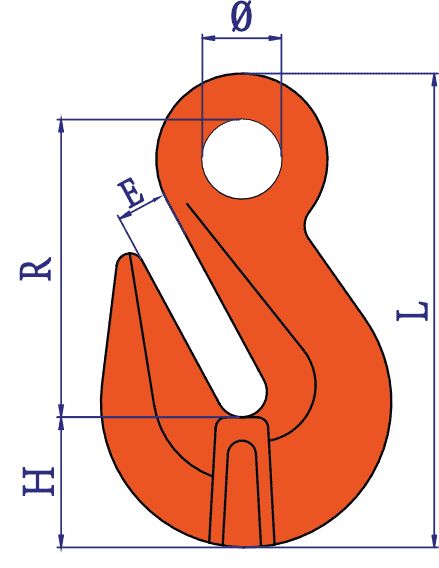

Size	Dimensions					W.L.L.	Weight
Size	R	H	E	Ø	L	W.L.L.	Weight
mm	mm	mm	mm	mm	mm	t	kg
6	49.2	18.5	8.0	13.5	76.0	1.12	0.17
8	60.0	21.0	11.0	17.0	90.3	2	0.25
10	78.0	29.0	13.2	20.0	120.0	3.15	0.65
13	98.0	42.8	16.5	26.0	156.0	5.3	1.39
16	106.5	43.5	19.4	30.0	167.0	8	2.20
20	140.0	54.8	24.0	37.0	217.3	12.5	4.60
22	162.2	68.0	28.0	44.0	255.2	15	8.20
26	193.5	78.5	30.0	49.0	304.5	21.2	9.80
32	228.0	95.0	38.0	57.0	360.5	31.5	19.40

แบรนด์	S-NEX
