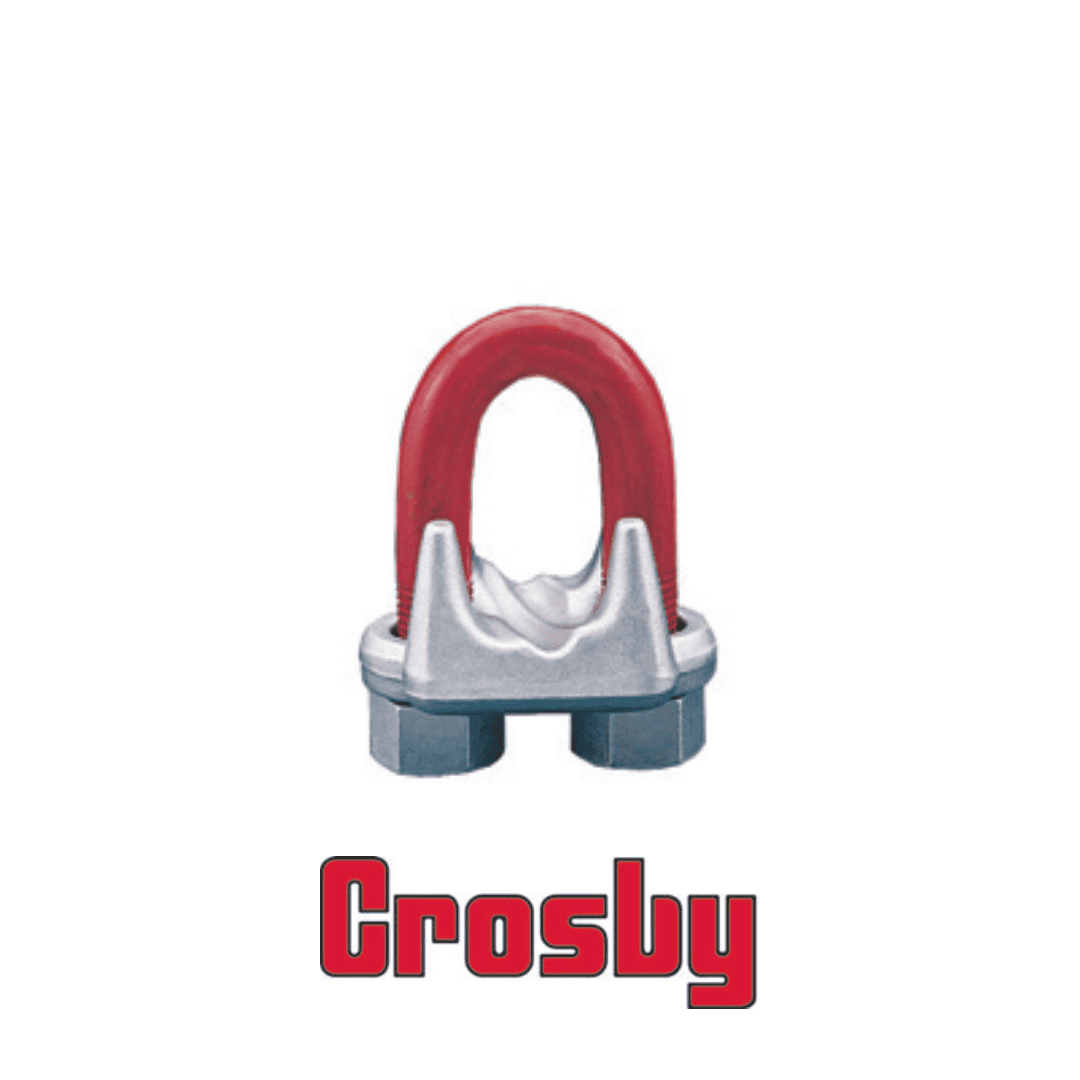

กิ๊บจับ ลวดสลิง Crosby Forged Wire Rope Clip G-450

Categories: กิ๊บจับ ลวดสลิง (Wire Rope Clip), Crosby, อุปกรณ์เข้าหัวลวดสลิง (Wire Rope End Fittings)

รายละเอียด และ ขนาด

Each base has a Product Identification Code (PIC) for material traceabilit , the name CROSBY or CG, and a size
forged into it.
Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for
3mm through 22mm sizes, and 90% for sizes 24mm through 90mm.
Entire Clip is galvanized to resist corrosive and rusting action.
Sizes 3mm through 62mm and 75mm have forged bases.
All Clips are individually bagged or tagged with proper application instructions and warning information.
Clip sizes up through 38mm have rolled threads.
Meets or exceeds all requirements of ASME B30.26 including identification, ductilit , design factor, proof load
and temperature requirements. Importantly, these wire rope clips meet other critical performance requirements
including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
Look for the Red-U-Bolt®, your assurance of Genuine Crosby Clips.

Reference: Crosby G-450


Rope Size		G-450 Stock No.	Std. Package Q	Weight Per 100	Dimensions (mm)
Rope Size		G-450 Stock No.	Std. Package Q	Weight Per 100	A	B	c	D	E	F	G	H
mm	inch			kg	mm	mm	mm	mm	mm	mm	mm	mm
3-4*	1/8*	1010015	100	2.72	5.6	18.3	11.2	11.9	10.4	9.65	20.6	23.9
5*	3/16*	1010033	100	4.54	6.35	24.6	14.2	15	12.7	11.2	23.9	29.5
6-7	1/4	1010051	100	8.62	7.85	26.2	12.7	19.1	16.8	14.2	30.2	36.6
8	5/16	1010079	100	12.7	9.65	35.1	19.1	22.4	18.3	17.5	33.3	42.9
9-10	3/8	1010097	100	21.8	11.2	38.1	19.1	25.4	23.1	19.1	41.4	49.3
11-13	7/16 - 1/2	1010131	50	80	0.5	1.88	1	1.19	1.13	0.88	1.91	2.28
14-16	9/16 - 5/8	1010177	50	110	0.56	2.25	1.25	1.31	1.34	0.94	2.06	2.5
18-20	3/4	1010195	25	64	15.7	70	36.6	38.1	35.8	26.9	57	72
22	7/8	1010211	25	96	19.1	79	41.1	44.5	40.4	31.8	62	80.5
24-26	1	1010239	10	114	19.1	89	46	47.8	45.2	31.8	67	88
28-30	1 1/8	1010257	10	128	19.1	98.5	51	51	48.5	31.8	71.5	91
32-34	1 1/4	1010275	10	199	22.4	108	54	59.4	55.5	36.6	79.5	105
36	1 3/8	1010293	10	200	22.4	118	58.5	59.4	58.5	36.6	79.5	106
38	1 1/2	1010319	10	247	22.4	125	60.5	66.5	62	36.6	86.5	113
41-42	1 5/8	1010337	Bulk	319	25.4	135	66.5	70	67.5	41.4	92	121
44-46	1 3/4	1010355	Bulk	424	28.7	146	70	77.5	74.5	46	97	134
48-52	2	1010373	Bulk	590	31.8	164	76	86	77	51	113	149
56-58	2 1/4	1010391	Bulk	726	31.8	181	81	98.5	81	51	114	162
62-65	2 1/2	1010417	Bulk	862	31.8	195	87.5	105	93.5	51	119	168
** 68-72	** 2-3/4	1010435	Bulk	1043	31.8	211	90.5	111	124	51	127	175
75-78	3	1010453	Bulk	1406	38.1	233	98.5	121	119	60.5	149	194
** 85-90	** 3-1/2	1010426	Bulk	1814	38.1	273	114	140	152	60.5	157	213
