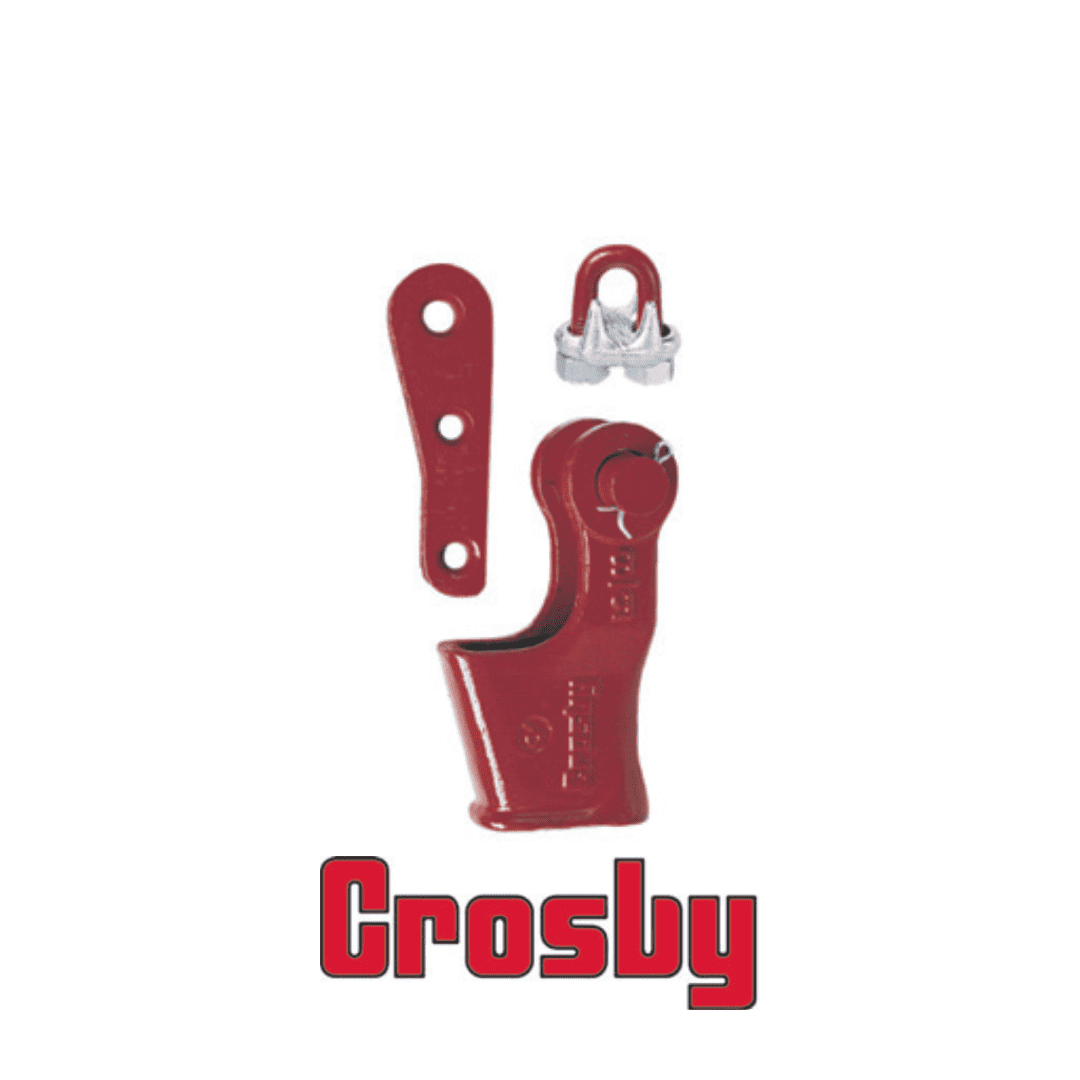

ซ็อกเก็ต ลวดสลิง Crosby Wedge Sockets S-421T

Categories: ซ็อกเกต ลวดสลิง (Sockets), Crosby, อุปกรณ์เข้าหัวลวดสลิง (Wire Rope End Fittings)

รายละเอียด และ ขนาด

Wedge socket terminations have an efficiency rating of 80% based on the catalog strength of XXI wire rope.
Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these sockets meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
Type Approval certification in accordance with ABS RULES FOR CONDITIONS OF CLASSIFICAION, PART 1 2017 STEEL VESSELS AND ABS GUIDE FOR CERTIFICATION OF LIFTING APPLIANCES 2017 available. Certificates available when requested at time of order and may include additional charges
Basket is cast steel and individually magnetic particle inspected.
Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets.
Secures the tail or “dead end” of the wire rope to the wedge, thus eliminates loss or “Punch out” of the wedge.
Eliminates the need for an extra piece of rope, and is easily installed.
The TERMINATORTM wedge eliminates the potential breaking off of the tail due to fatigue.
The tail, which is secured by the base of the clip and the wedge, is left undeformed.
Incorporates Crosby’s patented QUIC-CHECK® “Go” and “No-Go” feature cast into the wedge. The proper size rope is determined when the following criteria are met:
1) The wire rope should pass thru the “Go” hole in the wedge.
2) The wire rope should NOT pass thru the “No-Go” hole in the wedge.
Utilizes standard Crosby Red-U-Bolt® wire rope clip.
The 3/8 through 1-1/8 standard S-421 wedge socket can be retrofitted with the new style TERMINATOR wedge.
Available with Bolt, Nut, and Cotter Pin.
U.S. patent 5,553,360, Canada patent 2,217,004 and foreign equivalents.
Meets the performance requirements of EN 13411-6.
Available with API-2C certification upon request

Reference: Crosby S-421T

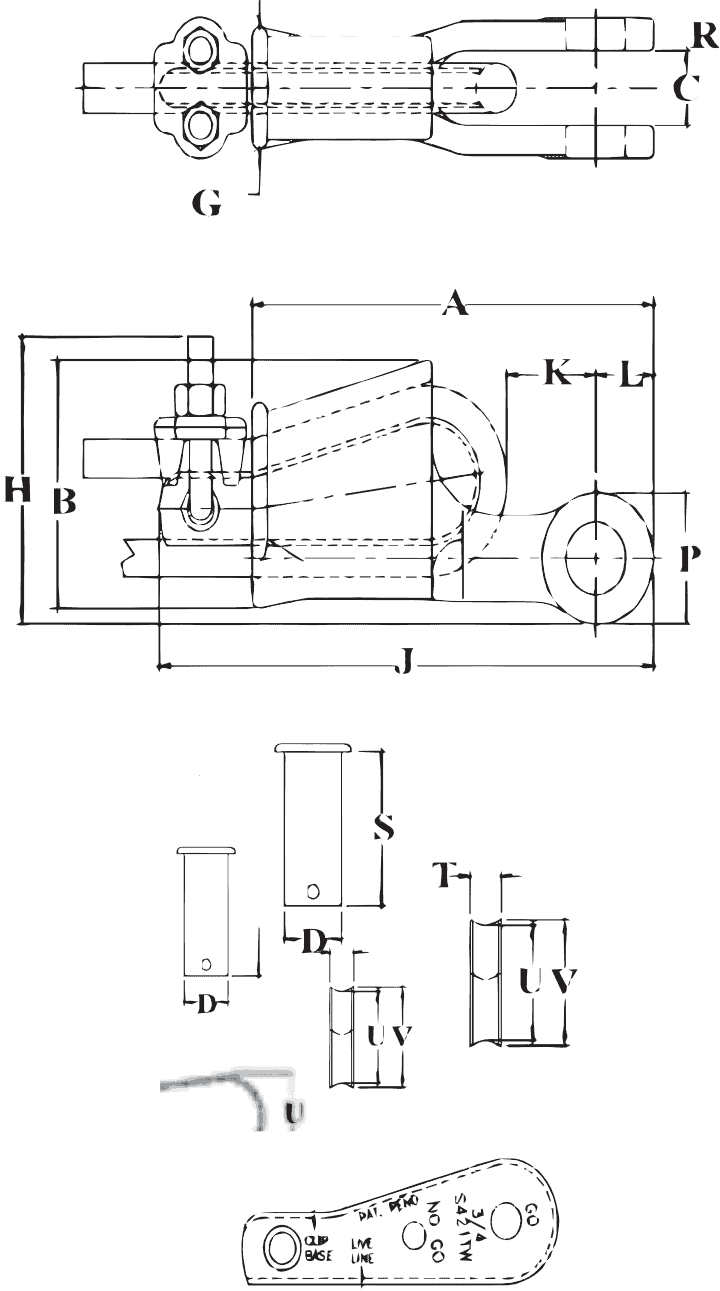

Wire Rope Diameter		S-421T Stock No.	S-421TB Stock No.	Dimensions (mm)
Wire Rope Diameter		S-421T Stock No.	S-421TB Stock No.	A	B	C +/- 2.29	D	G	H	J*	K*	L	P	R	S	T	U	V
mm	inch			mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
9-10	3/8	1035000	1035203	145	69.1	20.6	20.6	35.1	77.7	198	47.8	22.4	396	11.2	54.1	11.2	31.8	35.1
11-13	1/2	1035009	1035212	175	88.1	25.4	25.4	41.1	95.5	226	32	26.9	493	12.7	65	13.5	44.5	47.8
14-16	5/8	1035018	1035221	210	109	31.8	30.2	53.8	114	273	50.5	31	57.2	14.2	82.6	17.5	51	55.5
18-19	3/4	1035027	1035230	251	130	38.1	35.1	62	134	314	61.2	35.6	66.8	16.8	92.2	19.8	59.5	65
20-22	7/8	1035036	1035249	286	149	44.5	41.4	68.5	156	365	63	42.4	79.5	19.1	109	22.4	68.5	74.5
24-26	1	1035045	1035258	325	161	51	51	74.7	177	414	77.2	51	95.5	22.4	119	26.2	73	83.5
28	1 1/8	1035054	1035267	365	176	57	57	84	194	466	65	57	108	25.4	138	27.9	82.6	90.5
30-32	1 1/4	1035063	1035276	415	222	66.5	63.5	90.5	239	520	74.7	59.5	114	26.9	156	30.2	117	125
