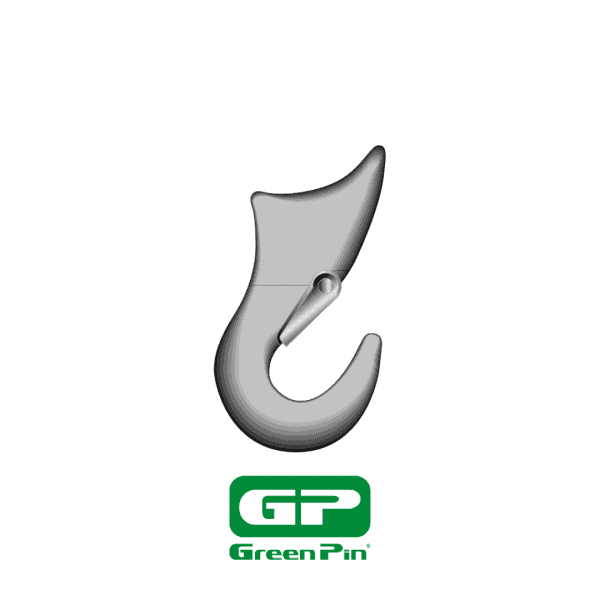

ตะขอ Green Pin Alloy Sliding Choker Hook P-6706A

ตะขอ Green Pin Alloy Sliding Choker Hook P-6706A

Categories: ตะขอ (Hook), Green Pin

ตะขอ Crosby Green Eye Hooks L-320

รายละเอียด และ ขนาด

Grade 8 sliding choker hook with safety latch
Material: alloy steel, grade 8
Safety factor: MBL equals 5 x WLL
Finish: painted red

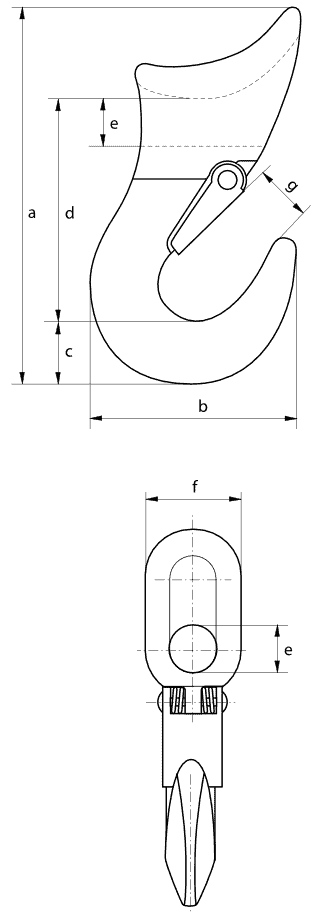

Working Load Limit	Rope Diameter	Dimensions (mm)							Weight Each
Working Load Limit	Rope Diameter	a	b	c	d	e	f	g	Weight Each
t	mm	mm	mm	mm	mm	mm	mm	mm	kg
0.8	6 - 11	112	63	19	65	14	30	16	0.4
1.6	10 - 13	143	82	26	83	17	30	19	0.8
2.5	14 - 16	170	98	30	97	19	33	25	1.2
3.2	16 - 20	196	115	36	110	22	40	28	1.9
5.4	22 - 26	260	142	46	145	36	60	35	4.2

แบรนด์	Green Pin
