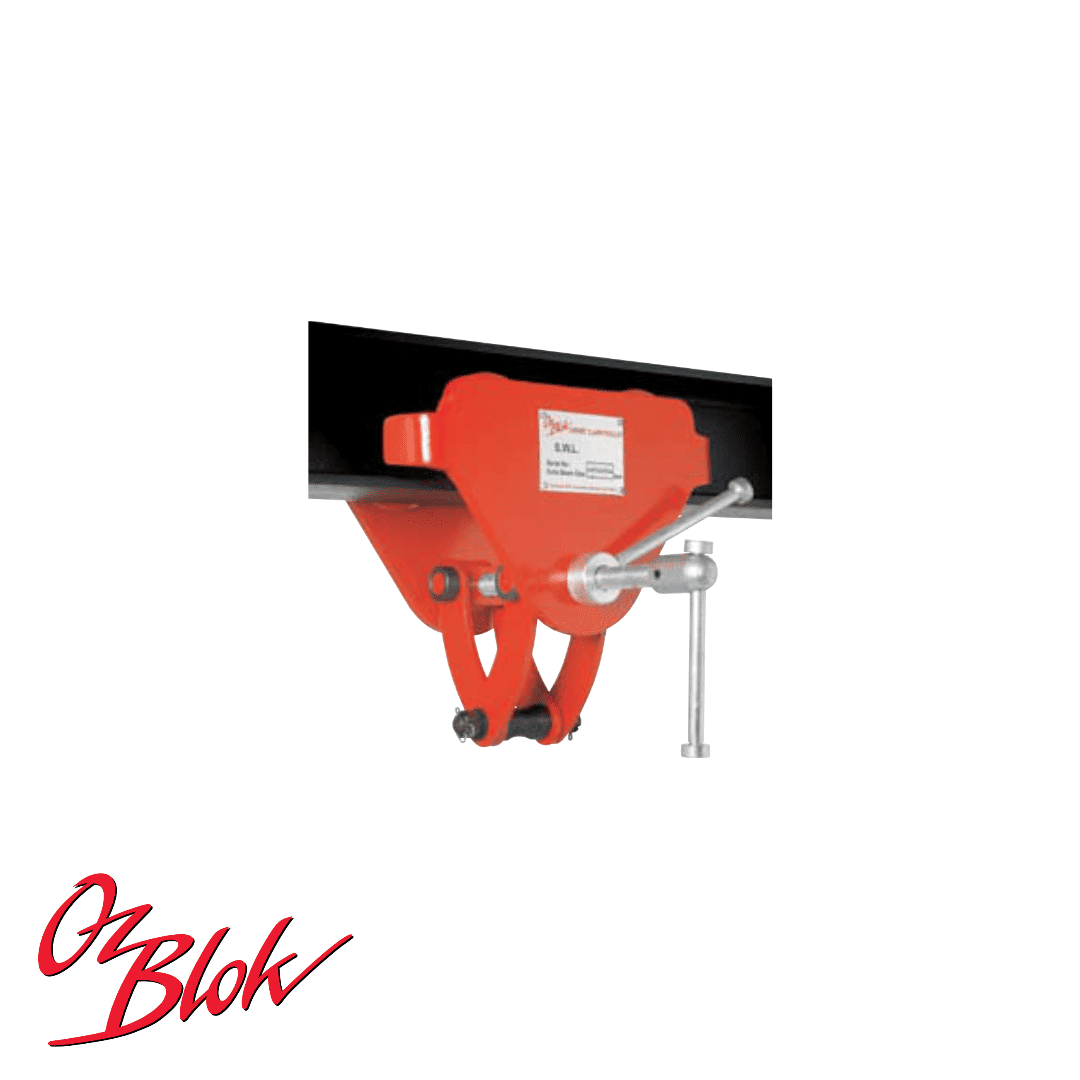

OzBlok Girder Trolley with Clamp

รายละเอียด และ ขนาด

Robust all-steel construction
Durable baked enamel paint protection
Super-quick adjustment to any girder width in range
Spare parts always available


Product Code	WLL	Test Load	Min. Radius	Clearance Dimensions					Beam Width	Net Weight

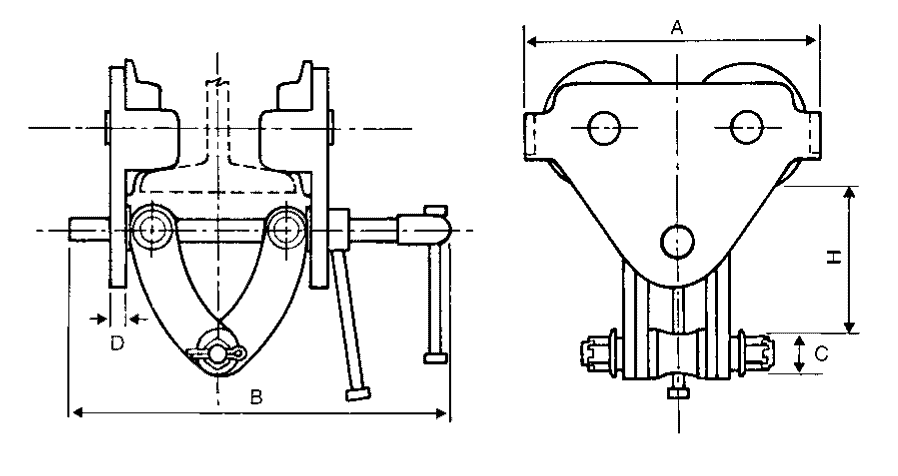

Product Code	WLL	Test Load	Min. Radius	A	B	C	D	H	Beam Width	Net Weight
	kg	kN	mm	mm	mm	mm	mm	mm	mm	kg
OGCT01	1000	12.25	1.1	260	340	20	10	171-232	63-210	11
OGCT02	2000	24.5	1.3	260	340	20	12	237-285	76-210	13
OGCT03	3000	36.8	1.5	330	360	24	14	160-200	76-210	26
OGCT05	5000	61.3	1.7	380	480	24	19	225-280	100-305	46
