ลวดสลิง Casar Superplast8

Name: ลวดสลิง Casar Superplast8 - ไทยมุ้ย THAIMUI
Brand: Casar
Price: 100.00 THB
Availability: InStock

Wire Rope Grade

Clear

SKU: N/A Categories: ลวดสลิง (Wire Rope), Casar Tags: คอนเทนเนอร์เครน (Container Crane), รถเครน (Mobile Crane), เครน (Crane), เครนนอกชายฝั่ง (Offshore Pedestal), เครนหน้าท่า (Dockside Crane), เครนโรงงาน/อุตสาหกรรม (Overhead Crane)

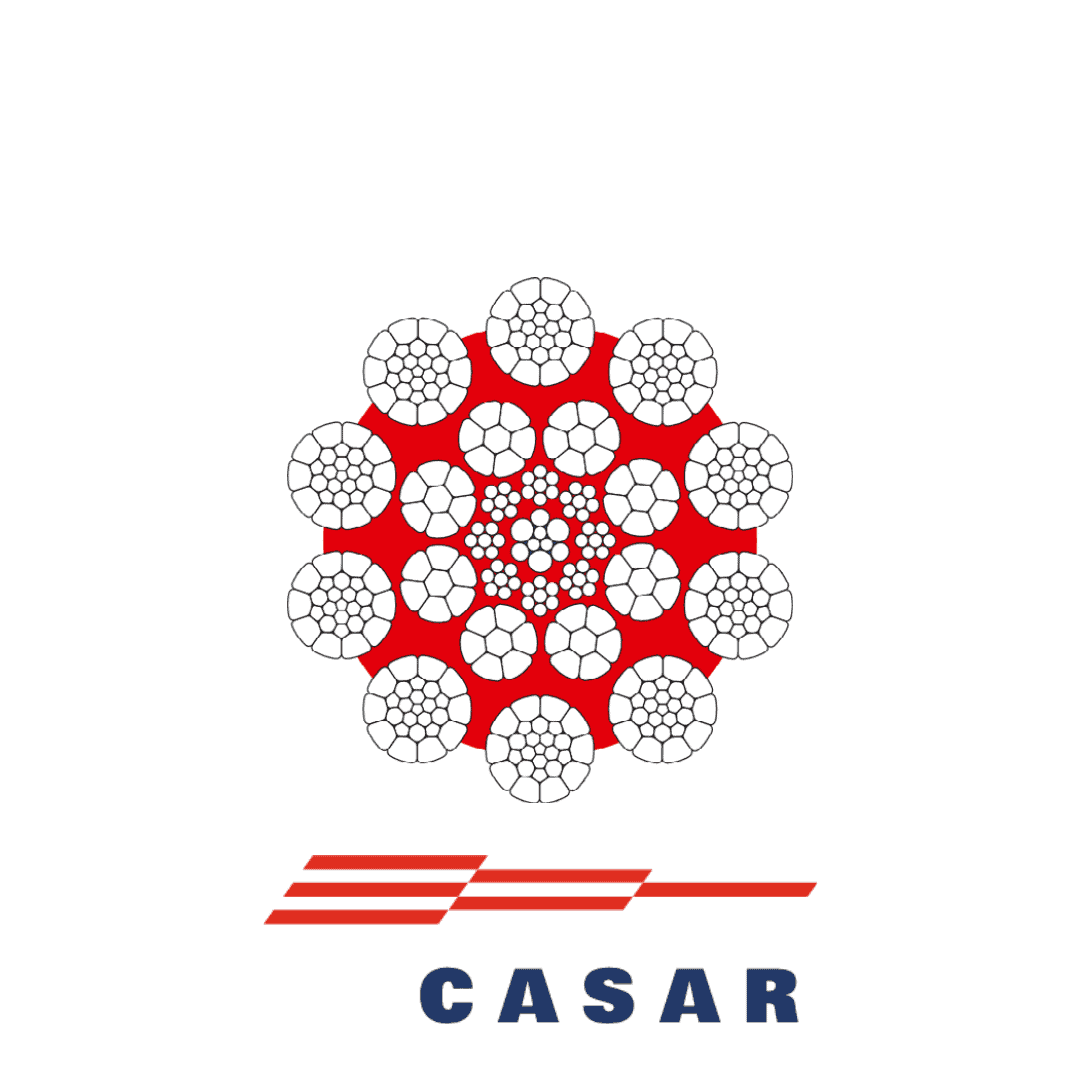

ลวดสลิง Casar Superplast8

ลวดสลิงไส้เหล็ก
ลวดสลิงสำหรับเครน (Crane)
ลวดสลิงสำหรับรถเครน (Mobile Crane)
ลวดสลิงสำหรับเครนโรงงาน/อุตสาหกรรม (Overhead Crane)
ลวดสลิงสำหรับคอนเทนเนอร์เครน (Container Crane)
ลวดสลิงสำหรับเครนนอกชายฝั่ง (Offshore Pedestal)
ลวดสลิงสำหรับเครนหน้าท่า (Dockside Crane)

For customers who require peak rope performance levels in mission critical applications, Casar manufactures and supplies highly-engineered ropes that exceed industry standards while providing record-setting service life.

Our proprietary and innovative German-engineered rope designs deliver the highest levels of performance and safety, superior breaking strength values, the highest bending fatigue resistance, superior crushing resistance, and the best rotational resistance characteristics for high lifts. We have decades of global experience and on-site engineering support in the crane, OEM and underground mining sectors.

CASAR has an extensive range of products available and we can customize to your application. Our wire rope specialists will assist customers in design, selection, installation and operation to improve rope performance and maximize service life.

Casar Superplast8 – Very high breaking load and good resistance against drum crushing. Hoisting rope in multiple part reeving for smaller lifting heights as well as for twin hoist systems with left and right hand lay ropes for greater lifting heights.


Diameter		Nominal length mass		Minimum Breaking Force
Diameter		Nominal length mass		1960 N/mm2				2160 N/mm2
mm	inch	kg/m	lb/ft	kN	t(metric)	lbs	t(2000lbs)	kN	t(metric)	lbs	t(2000lbs)
10		0,49	0,33	90,9	9,27	20.435	10,22	99,6	10,16	22.391	11,20
11	7/16'	0,59	0,39	109,0	11,12	24.504	12,25	119,0	12,13	26.752	13,38
12		0,69	0,46	127,0	12,95	28.551	14,28	139,0	14,17	31.248	15,62
	1/2'	0,77	0,52	142,2	14,51	31.979	15,99	155,7	15,88	35	17,50
13		0,81	0,54	152,0	15,50	34.171	17,09	166,0	16,93	37.318	18,66
14		0,93	0,62	174,0	17,74	39.117	19,56	190,0	19,37	42.714	21,36
15		1,07	0,72	200,0	20,39	44.962	22,48	219,0	22,33	49.233	24,62
16	5/8'	1,22	0,82	227,0	23,15	51.032	25,52	248,0	25,29	55.753	27,88
17		1,39	0,93	260,0	26,51	58.45	29,23	285,0	29,06	64.071	32,04
18		1,56	1,05	293,0	29,88	65.869	32,93	321,0	32,73	72.164	36,08
19	3/4'	1,74	1,17	320,0	32,63	71.939	35,97	351,0	35,79	78.908	39,45
20		1,93	1,30	358,0	36,51	80.482	40,24	395,0	40,28	88.8	44,40
21		2,12	1,43	395,0	40,28	88.8	44,40	436,0	44,46	98.017	49,01
22		2,33	1,56	432,0	44,05	97.117	48,56	474,0	48,34	106.559	53,28
	7/8'	2,37	1,59	440,9	44,96	99.114	49,56	483,7	49,33	108.75	54,38
23		2,54	1,71	473,0	48,23	106.335	53,17	518,2	52,84	116.496	58,25
24		2,78	1,86	517,4	52,76	116.316	58,16	566,9	57,81	127.444	63,72
25		3,00	2,02	559,6	57,06	125.803	62,90	613,4	62,55	137.898	68,95
	1'	3,10	2,08	577,7	58,90	129.861	64,93	633,2	64,57	142.346	71,17
26		3,24	2,18	604,9	61,68	135.987	67,99	662,7	67,58	148.981	74,49
27		3,48	2,34	646,8	65,96	145.406	72,70	708,6	72,26	159.3	79,65
28		3,74	2,51	698,9	71,27	157.119	78,56	762,0	77,70	171.304	85,65
	1 1/8'	3,89	2,62	727,9	74,23	163.638	81,82	793,6	80,93	178.412	89,21
29		3,99	2,68	737,8	75,24	165.864	82,93	808,3	82,42	181.713	90,86
30		4,28	2,88	796,8	81,25	179.128	89,56	872,9	89,01	196.236	98,12
31		4,53	3,04	846,7	86,34	190.346	95,17	927,5	94,58	208.51	104,26
32	1 1/4'	4,86	3,27	925,9	94,42	208.151	104,08	1.014,3	103,43	228.024	114,01
33		5,19	3,49	968,4	98,75	217.705	108,85	1.060,9	108,18	238.5	119,25
34		5,58	3,75	1.046,0	106,66	235.15	117,58	1.145,9	116,85	257.609	128,80
35	1 3/8'	5,89	3,96	1.103,7	112,55	248.122	124,06	1.209,1	123,30	271.816	135,91
36		6,26	4,21	1.172,5	119,56	263.588	131,79	1.284,5	130,98	288.767	144,38
38	1 1/2'	6,87	4,62	1.282,5	130,78	288.317	144,16	1.405,0	143,27	315.857	157,93
40		7,67	5,15	1.429,3	145,75	321.319	160,66	1.565,8	159,67	352.006	176,00
	1 5/8'	8,17	5,49	1.521,9	155,19	342.13	171,06	1.667,2	170,01	374.804	187,40
42		8,45	5,68	1.581,5	161,27	355.535	177,77	1.732,6	176,68	389.504	194,75
44		9,24	6,21	1.725,8	175,98	387.975	193,99	1.890,7	192,80	425.046	212,52
	1 3/4	9,43	6,33	1.761,3	179,60	395.952	197,98	1.929,6	196,76	433.785	216,89
46		10,25	6,89	1.899,3	193,68	426.98	213,49	2.080,7	212,17	467.76	233,88
48	1 7/8'	11,08	7,44	2.068,9	210,97	465.107	232,55	2.266,6	231,13	509.552	254,78
50		11.95	8,03	2.232,3	227,63	501.841	250,92	2.445,5	249,37	549.77	274,89
	2'	12,33	8,29	2.304,3	234,98	518.028	259,01	2.524,4	257,42	567.504	283,75
52		12,93	8,69	2.421,3	246,91	544.33	272,16	2.652,6	270,49	596.328	298,16
54	2 1/8'	14,07	9,46	2.626,5	267,83	590.461	295,23	2.877,4	293,42	646.865	323,43
56		15,11	10,15	2.853,4	290,97	641,470	320,73	3.126,0	318,77	702.753	351,38
	2 1/4'	15,65	10,52	2.956,2	301,45	664.584	332,29	3.238,6	330,25	728.075	364,04
58		16,12	10,83	3.004,3	306,36	675.393	337,70	3.291,3	335,62	739.914	369,96
60		17,29	11,62	3.245,0	330,90	729.505	364,75	3.555,0	362,51	799.196	399,60
	2 3/8'	17,48	11,74	3.280,2	334,50	737,429	368,71	3.593,6	366,45	807.877	403,94
62		18,49	12,42	3.432,1	349,98	771.567	385,78	3.759,9	383,41	845.259	422,63
64	2 1/2'	19,59	13,16	3.646,8	371,87	819.833	409,92	3.995,1	407,39	898.134	449,07
66		20,96	14,09	3.876,8	395,33	871.539	435,77	4.247,1	433,09	954.786	477,39
	2 5/8'	21,39	14,38	3.956,5	403,46	889,457	444,73	4.334,4	441,99	974.415	487,21
68		22,03	14,80	4.147,3	422,91	932.35	466,17	4.600,3	469,10	1.034.188	517,09
70	2 3/4'	23,53	15,81	4.462,4	455,04	1.003.187	501,59	4.917,7	501,47	1.105.543	552,77
72		24,98	16,78	4.713,0	480,60	1.059.524	529,76	5.193,9	529,64	1.167.635	583,82
74	2 7/8'	26,28	17,66	4.980,6	507,89	1.119.683	559,84	5,488,9	559,72	1.233.954	616,98
76		27,57	18,53	5.226,3	532,94	1.174.919	587,46	5.759,6	587,32	1.294.809	647,40
