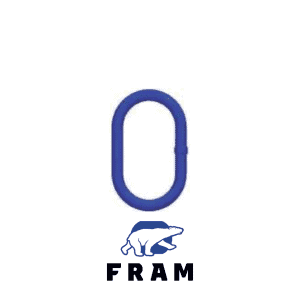

ห่วงเหล็ก มาสเตอร์ลิงค์ S-NEX Assembly

Name: ห่วงเหล็ก มาสเตอร์ลิงค์ S-NEX Assembly - ไทยมุ้ย THMUI - ผู้เชี่ยวชาญลวดสลิง อุปกรณ์ยกหิ้วมาตรฐานสากล
Brand: S-NEX
Price: 100.00 THB
Availability: InStock

หมวดหมู่: ห่วงเหล็ก มาสเตอร์ลิงค์ (Masterlink), S-NEX

Specification and Dimension


Size (mm)	Weight (kg)	American chain	3 or 4 chain working load (The Angle 0-45°)	Rope woking load (t)	A	B	D	a	b	d	W.L.L. (t)
3/4	1.70	1/4	3.15	5.60	140 ± 6	70 ± 5	20 ± 1	85 ± 5	40 ± 3	14 ± 1	4.25
3/4	1.70	5/16	4.25	5.60	140 ± 6	70 ± 5	20 ± 1	85 ± 5	40 ± 3	14 ± 1	4.25
7/8	2.18	5/16	4.25	6.90	160 ± 6	95 ± 5	22 ± 1	85 ± 5	40 ± 5	14 ± 1	6.70
7/8	2.18			6.90	160 ± 6	95 ± 5	22 ± 1	85 ± 5	40 ± 5	14 ± 1	6.70	3/8	6.70
1	3.29	3/8	6.70	11.8	178 ± 6	89 ± 5	25 ± 1	100 ± 5	60 ± 5	18 ± 1	6.70
1	3.29	3/8	6.70	11.8	178 ± 6	89 ± 5	25 ± 1	100 ± 5	60 ± 5	18 ± 1	6.70
1 1/4	7.18	1/2	11.2	17.7	220 ± 7	110 ± 6	32 ± 2	100 ± 5	60 ± 5	22 ± 1	17.0
1 1/4	7.18			17.7	220 ± 7	110 ± 6	32 ± 2	100 ± 5	60 ± 5	22 ± 1	17.0	5/8	17.0
1 1/2	12.91	5/8	17.0	27.7	267 ± 7	135 ± 6	38 ± 2	180 ± 6	100 ± 5	30 ± 2	23.6
1 1/2	12.91			27.7	267 ± 7	135 ± 6	38 ± 2	180 ± 6	100 ± 5	30 ± 2	23.6	3/4	23.6
1 3/4	121.25	3/4	23.6	38.5	305 ± 10	152 ± 6	45 ± 2	180 ± 6	100 ± 5	32 ± 2	31.5
1 3/4	121.25			38.5	305 ± 10	152 ± 6	45 ± 2	180 ± 6	100 ± 5	32 ± 2	31.5	7/8	31.5
2	30.34	7/8	31.5	46.5	356 ± 10	178 ± 6	50 ± 2	180 ± 6	100 ± 5	38 ± 2	31.5
2	30.34	7/8	31.5	46.5	356 ± 10	178 ± 6	50 ± 2	180 ± 6	100 ± 5	38 ± 2	31.5
2 1/2	64.40	1	45.0	72.6	406 ± 10	203 ± 6	64 ± 2	355 ± 8	178 ± 6	51 ± 2	45.0
2 1/2	64.40	1	45.0	72.6	406 ± 10	203 ± 6	64 ± 2	355 ± 8	178 ± 6	51 ± 2	45.0
2 3/4	89.00	1 1/4	67.0	98.4	406 ± 10	241 ± 6	70 ± 2	406 ± 8	203 ± 6	57 ± 2	67.0
2 3/4	89.00	1 1/4	67.0	98.4	406 ± 10	241 ± 6	70 ± 2	406 ± 8	203 ± 6	57 ± 2	67.0
