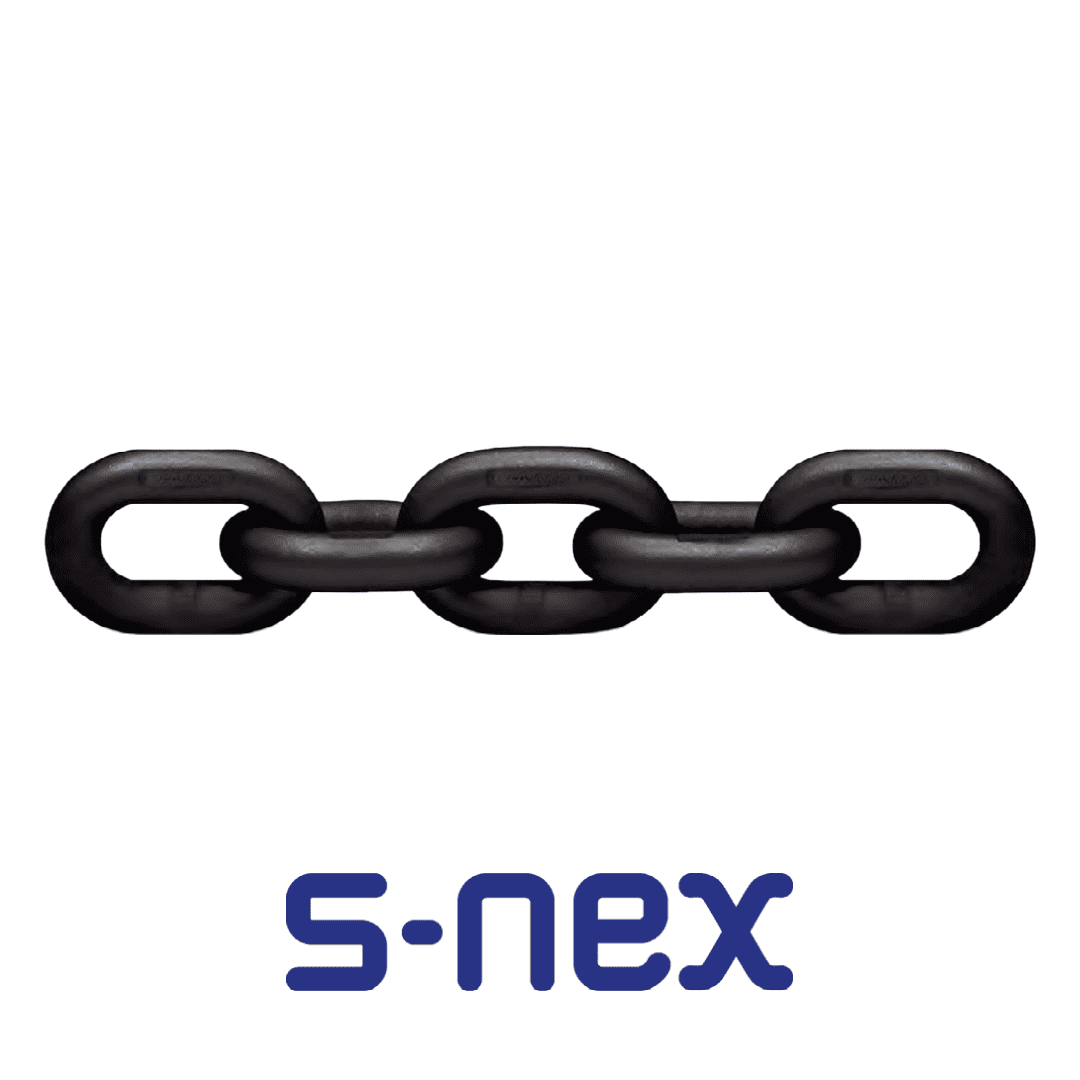

โซ่ S-NEX Alloy Steel Chain Grade100

รายละเอียด และ ขนาด


Size	Dimensions					Mechanical Properties
	⌀ Diameter		L	W		Working Load Limit	Proof Test Min	Minimum Breaking Force	Elongation Min
	Min	Max	Max	Min	Max	Working Load Limit	Proof Test Min	Minimum Breaking Force	Elongation Min
mm	mm	mm	mm	mm	mm	kg	kN	kN	%
5.50	5.34	5.50	17.60	7.14	8.25	1220	23.80	47.60	20%
7.00	6.79	7.00	22.90	9.53	10.92	1950	38.50	77.00	20%
8.00	7.76	8.00	26.40	10.92	12.70	2600	51.00	102.00	20%
10.00	9.70	10.00	32.00	13.00	15.20	4000	79.00	158.00	20%
13.00	12.61	13.00	41.60	17.48	19.50	6800	134.00	268.00	20%
16.00	15.52	16.00	51.20	20.63	24.00	10300	201.00	402.00	20%
