กิ๊บจับ ลวดสลิง Crosby Bundle Clips G-460

Categories: กิ๊บจับ ลวดสลิง (Wire Rope Clip), Crosby, อุปกรณ์เข้าหัวลวดสลิง (Wire Rope End Fittings)

รายละเอียด และ ขนาด

Each base and Bundle Clip adapter has a Product Identification Code (PIC) for material tracability, the name Crosby or CG, and a size forged into it.
Entire clip galvanized to resist corrosive and rusting action.
Forged bases and bundle clip adapters.
All bundle clips are individually bagged or tagged with proper application instructions and warning information.
Clips have rolled threads.

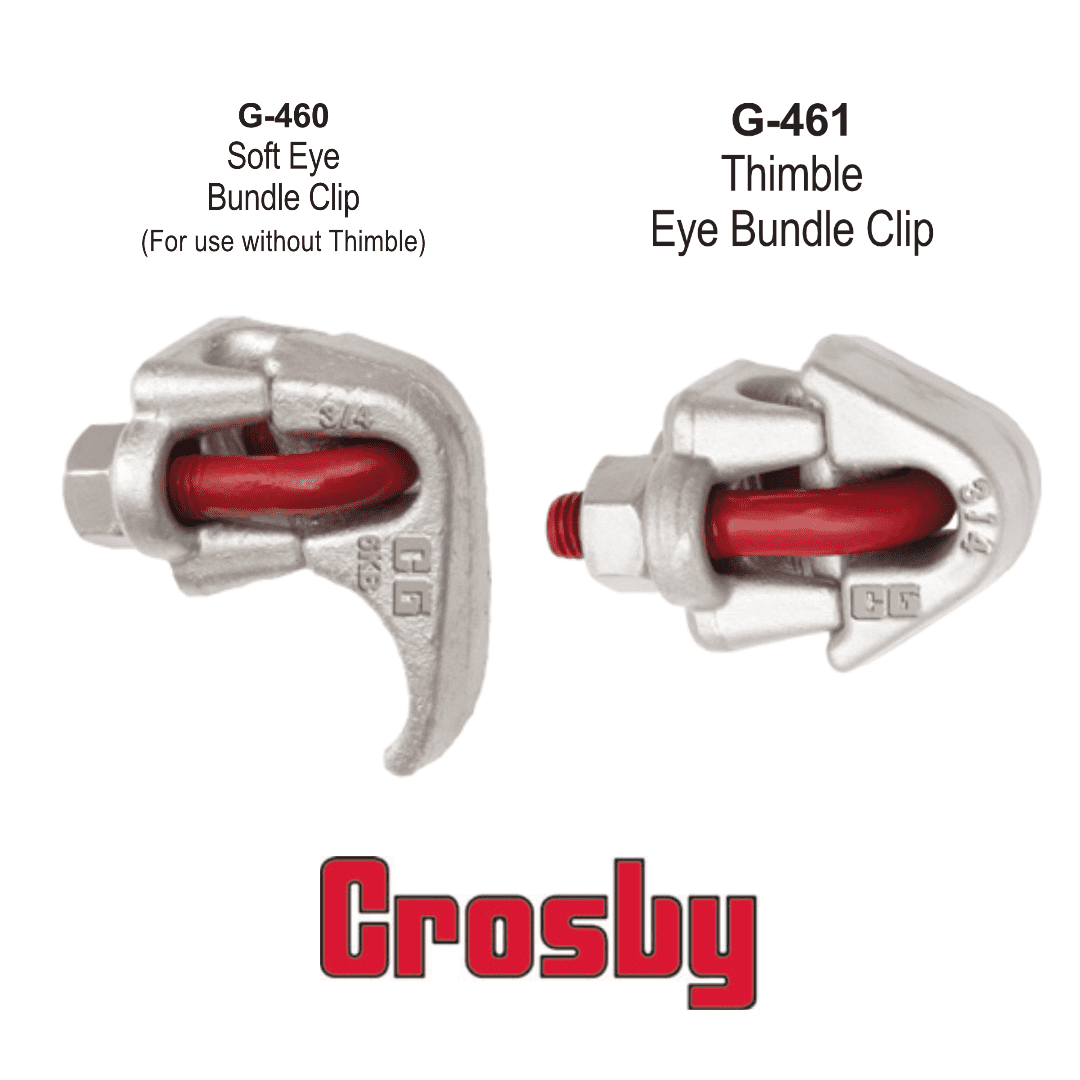

Bundle Clip Adapter for Soft Eye (G4460) and for Thimble Eye (G4461) kits available.
Look for the Red-U-Bolt, your assurance of Genuine Crosby Products.
Meets or exceeds all requirements of ASME B30.26 including manufacturing I.D. and size requirements.
Importantly, these wire rope bundle clips meet material traceability not addressed by ASME B30.26

Reference: Crosby® Bundle Clips G-460

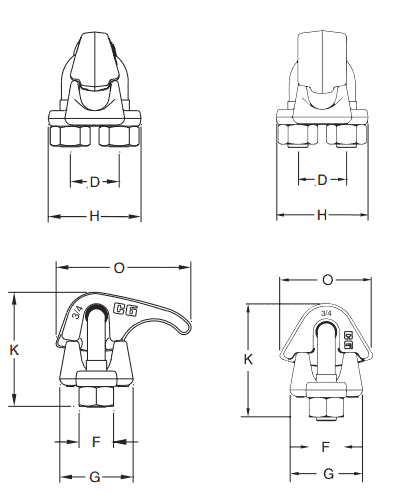

Rope Size		Bt.mdle Clip	Stock No.	Dimensions (mm)
Rope Size		Bt.mdle Clip	Stock No.	D	F	G	H	K	O
mm	inch			mm	mm	mm	mm	mm	mm	kg
18-20	3/4	G460	1010509	38.1	26.9	57.2	72.1	88.9	105	1.1
18-20	3/4	G461	1010619	38.1	26.9	57.2	72.1	88.9	72.4	1.1
