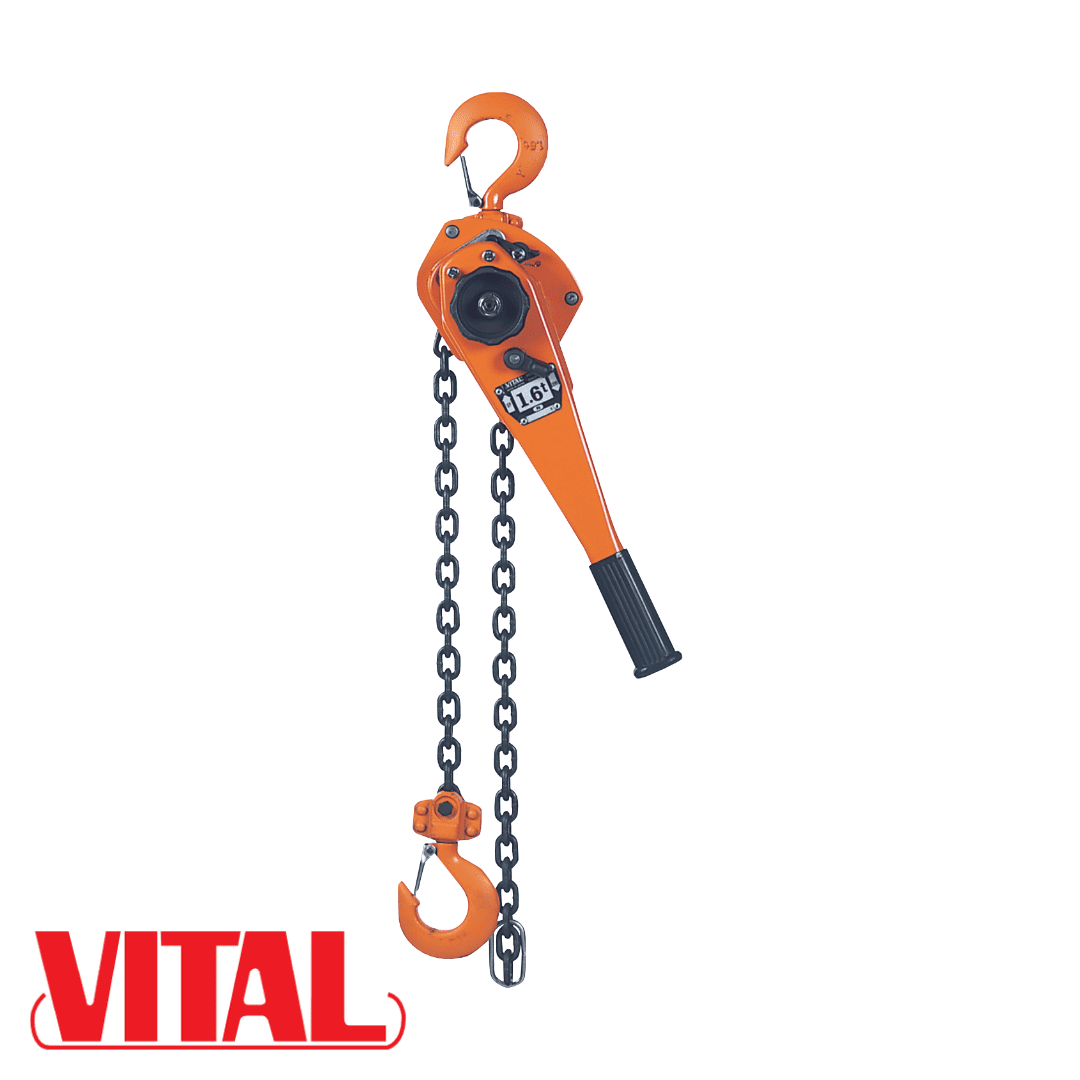

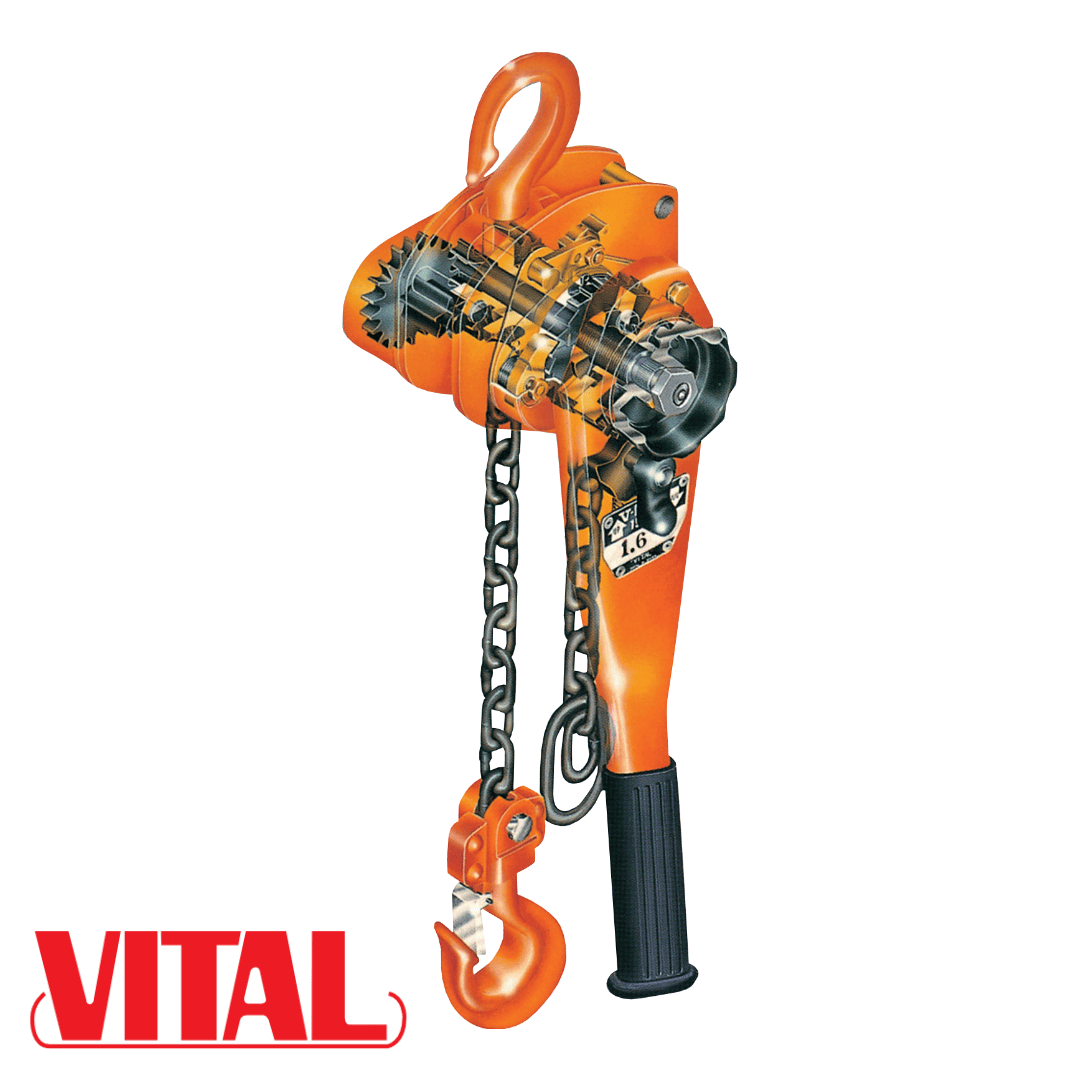

รอกโยกโซ่ Vital VR2

รายละเอียด และ ขนาด

Lifting
Lowering
Fastening
Pulling


Model Number	Capacity	Standard Lift	Net Weight	Min. Distance between Hooks	Pull Required to Lift Full Load		Chain Thickness	Clearance Dimensions

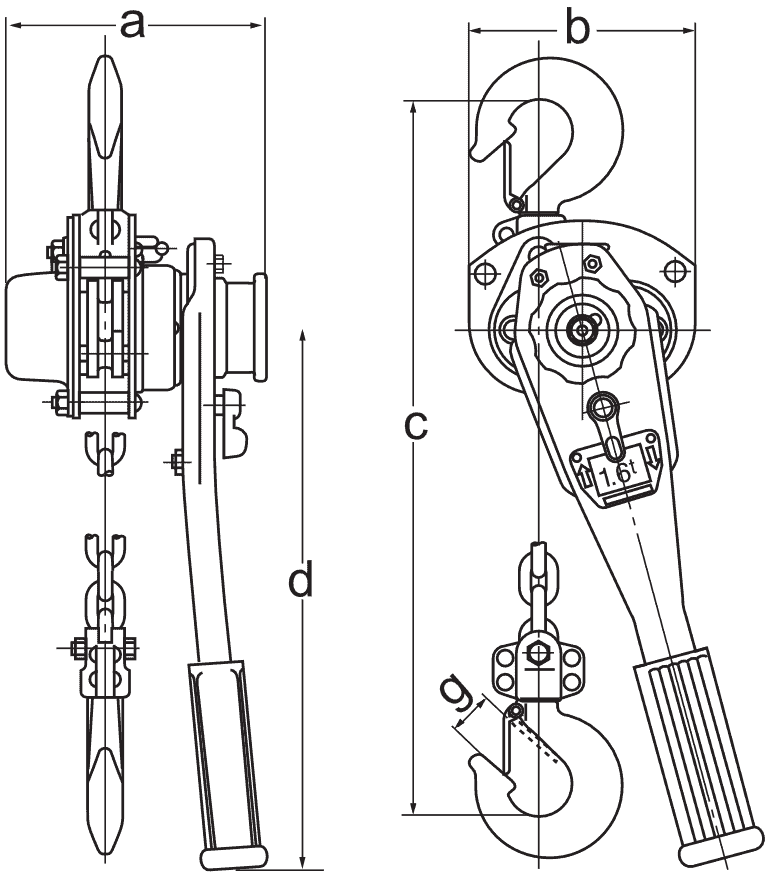

Model Number	Capacity	Standard Lift	Net Weight	Min. Distance between Hooks	Pull Required to Lift Full Load		Chain Thickness	B	C	D	E	H
	t	m	kg	mm	kgf	N	mm	mm	mm	mm	mm	mm
VR2-08	0.8	1.5	6.9	295	15	147	6.3	148	128	295	256	27
VR2-10	1	1.5	7.1	310	20	196	6.3	148	128	310	256	30
VR2-15	1.6	1.5	9.7	335	18	177	7.1	163.5	148	325	368	34
VR2-30	3.2	1.5	16.3	405	38	373	9	191	181	395	368	43
VR2-60	6.3	1.5	26.7	550	39	382	9	191	244	550	368	47
