สเก็น โอเมก้า Crosby Screw Pin Anchor Shackles G-209

สเก็น โอเมก้า Crosby Screw Pin Anchor Shackles G-209

หมวดหมู่: สเก็น (Shackle), Crosby

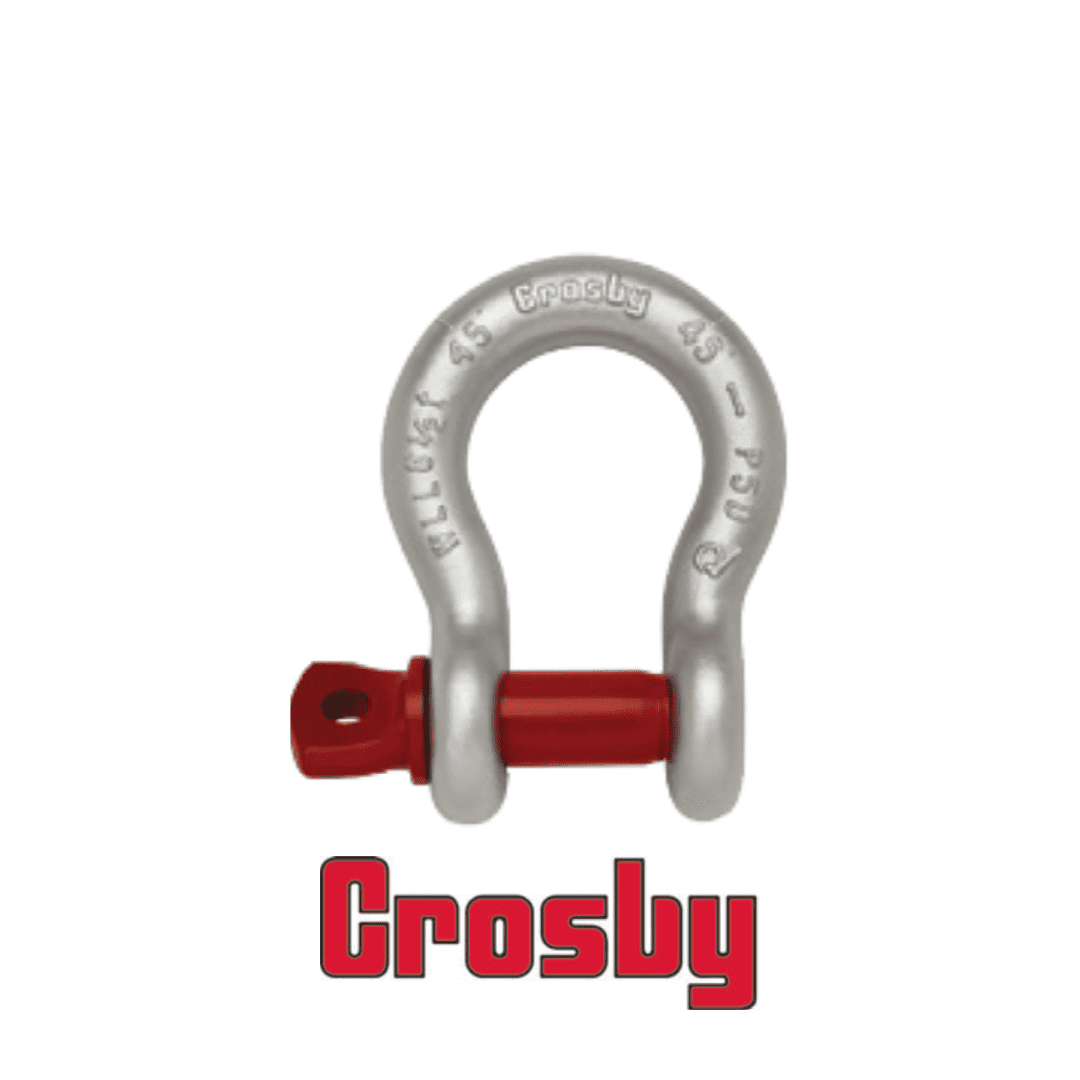

สเก็น โอเมก้า Crosby Screw Pin Anchor Shackles G-209

รายละเอียด และ ขนาด

Capacities 1/3 thru 55 metric tons, grade 6.
Forged – Quenched and Tempered, with alloy pins.
Working Load Limit and grade “6” permanently shown on every shackle.
Hot Dip galvanized or self colored.
Sizes 3/8 inch and below are mechanically galvanized.
Fatigue rated.
Shackles 25t and larger are RFID EQUIPPED.
Shackles can be furnished proof tested with certificates to desi nated standards, such as ABS, DNV, Lloyds, or other certification. Proof testing and certificati available when requested at the time of order, charges will apply.
Approved for use at -40° C (-40° F) to 204° C (400° F).
All 209 and 210 shackles can meet charpy requirements of 42 Joules(31 ft•lbf) avg. at -20° C (-4° F) upon special request.
Meets or exceeds all requirements of ASME B30.26.
Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available. Certificates available when
requested at time of order and may include additional charges.
Look for the Red Pin®. . . the mark of genuine Crosby quality.

Reference: Crosby

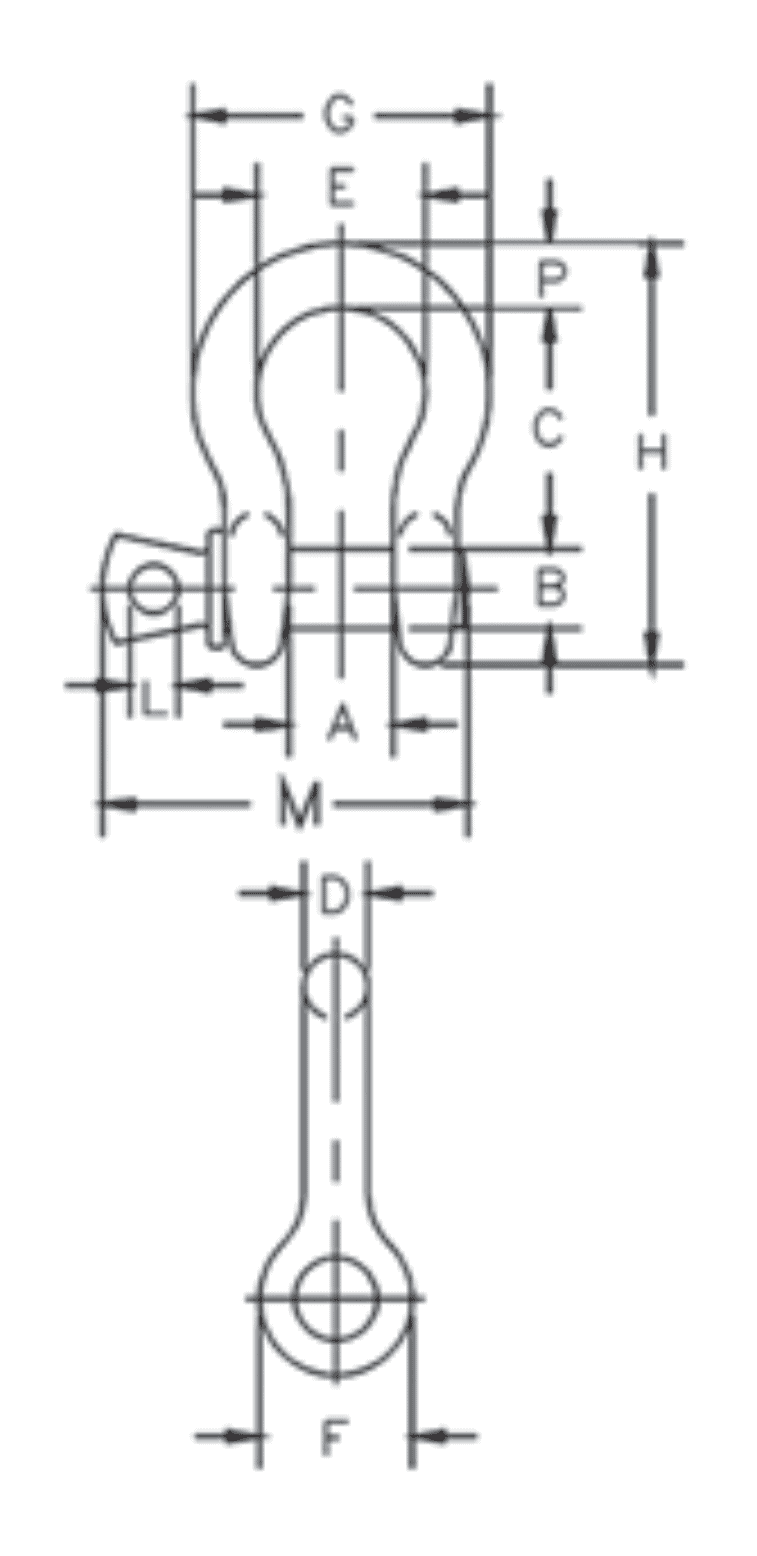

Nominal Size	Working Load Limit	Weight Each	Dimensions											Tolerance + /-
Nominal Size	Working Load Limit	Weight Each	A	B	C	D	E	F	G	H	L	M	P	C	A
inch	t	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
3/16	1/3	0.03	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	1.50	1.50
1/4	1/2	0.05	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	1.50	1.50
5/16	3/4	0.09	13.5	9.65	31.0	7.85	21.3	19.1	37.3	53.0	5.60	42.2	7.85	3.30	1.50
3/8	1	0.14	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63.0	6.35	515.0	9.65	3.30	1.50
7/16	1 1/2	0.17	19.1	12.7	42.9	11.20	29.5	26.9	51.5	74.0	7.85	60.5	11.2	3.30	1.50
1/2	2	0.33	20.6	16.0	478.0	12.70	33.3	30.2	58.5	83.5	9.65	68.5	12.7	3.30	1.50
5/8	3 1/4	0.62	26.9	19.1	60.5	16.00	42.9	38.1	74.5	106	11.2	85.0	17.5	6.35	1.50
3/4	4 3/4	1.07	31.8	22.4	71.5	19.10	51.0	46.0	89.0	126	12.7	101	20.6	6.35	1.50
7/8	6 1/2	1.64	36.6	25.4	84.0	22.40	58.0	53.0	102	148	12.7	114	24.6	6.35	1.50
1	8 1/2	2.28	42.9	28.7	95.5	25.40	68.5	60.5	119	167	14.2	129	26.9	6.35	1.50
1 1/8	9 1/2	3.36	46.0	31.8	108	29.50	74.0	68.5	131	190	16.0	142	31.8	6.35	1.50
1 1/4	12	4.31	515.0	35.1	119	32.80	82.5	76.0	146	210	17.5	156	35.1	6.35	1.50
1 3/8	13 1/2	6.14	57.0	38.1	133	36.10	92.0	84.0	162	233	19.1	174	38.1	6.35	3.30
1 1/2	17	7.8	60.5	41.4	146	39.10	98.5	92.0	175	254	20.6	187	41.1	6.35	3.30
1 3/4	25	12.6	73.0	51.0	178	46.70	127	106	225	313	25.4	231	57.0	6.35	3.30
2	35	20.4	82.5	57.0	197	53.00	146	122	253	348	31.0	263	61.0	6.35	3.30
2 1/2	55	38.9	105	70.0	267	69.00	184	145	327	453	35.1	330	79.5	6.35	6.35

แบรนด์	Crosby
