ลวดสลิง Casar Turboplast

Name: ลวดสลิง Casar Turboplast - ไทยมุ้ย THMUI - ผู้เชี่ยวชาญลวดสลิง อุปกรณ์ยกหิ้วมาตรฐานสากล
Brand: Casar
Price: 100.00 THB
Availability: InStock

เกรดของลวดสลิง

ล้างค่า

รหัสสินค้า: ไม่ระบุ หมวดหมู่: ลวดสลิง (Wire Rope), Casar ป้ายกำกับ: คอนเทนเนอร์เครน (Container Crane), รถเครน (Mobile Crane), เครน (Crane), เครนนอกชายฝั่ง (Offshore Pedestal), เครนหน้าท่า (Dockside Crane), เครนโรงงาน/อุตสาหกรรม (Overhead Crane)

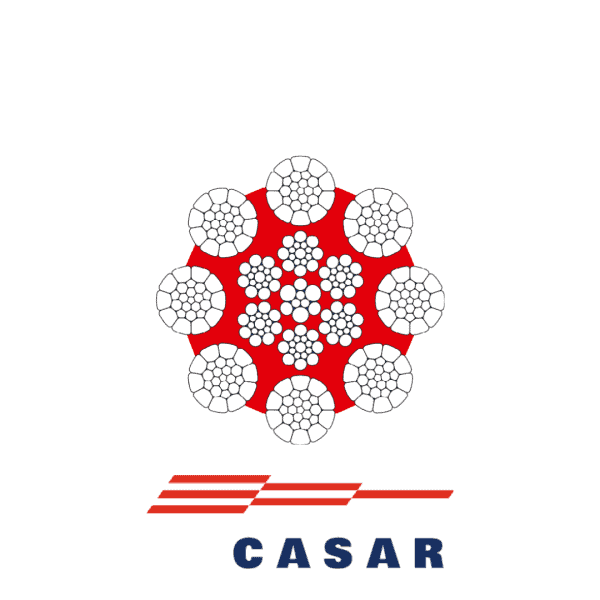

ลวดสลิง Casar Turboplast

ลวดสลิงไส้เหล็ก
ลวดสลิงสำหรับเครน (Crane)
ลวดสลิงสำหรับรถเครน (Mobile Crane)
ลวดสลิงสำหรับเครนโรงงาน/อุตสาหกรรม (Overhead Crane)
ลวดสลิงสำหรับคอนเทนเนอร์เครน (Container Crane)
ลวดสลิงสำหรับเครนนอกชายฝั่ง (Offshore Pedestal)
ลวดสลิงสำหรับเครนหน้าท่า (Dockside Crane)

For customers who require peak rope performance levels in mission critical applications, Casar manufactures and supplies highly-engineered ropes that exceed industry standards while providing record-setting service life.

Our proprietary and innovative German-engineered rope designs deliver the highest levels of performance and safety, superior breaking strength values, the highest bending fatigue resistance, superior crushing resistance, and the best rotational resistance characteristics for high lifts. We have decades of global experience and on-site engineering support in the crane, OEM and underground mining sectors.

CASAR has an extensive range of products available and we can customize to your application. Our wire rope specialists will assist customers in design, selection, installation and operation to improve rope performance and maximize service life.

Casar Turboplast – High breaking load and good resistance against crushing. Hoisting rope in multiple part reeving for smaller lifting heights as well as for twin hoist systems with left and right hand lay ropes for greater lifting
heights.


Diameter		Nominal length mass		Minimum Breaking Force
Diameter		Nominal length mass		1960 N/mm2				2160 N/mm2
mm	inch	kg/m	lb/ft	kN	t(metric)	lbs	t(2000lbs)	kN	t(metric)	lbs	t(2000lbs)
8	5/16	0,30	0,20	58,0	5,91	13.039	6,52	63,5	6,48	14.275	7,14
9		0,38	0,25	74,0	7,55	16.636	8,32	81,4	8,30	18.299	9,15
10		0,47	0,32	90,0	9,18	20.233	10,12	101,0	10,30	22.706	11,35
11	7/16	0,57	0,38	109,7	11,19	24.662	12,33	122,6	12,50	27.562	13,78
12		0,67	0,45	130,0	13,26	29.225	14,61	144,0	14,68	32.372	16,19
	1/2	0,75	0,51	146,0	14,89	32.822	16,41	161,8	16,50	36.374	18,19
13		0,76	0,51	153,0	14,99	33.047	16,52	170,0	16,49	36.352	18,18
14		0,91	0,61	177,0	18,05	39.791	19,90	196,0	19,99	44.063	22,03
15		1,06	0,71	205,0	20,90	46.086	23,04	226,0	23,05	50.807	25,40
16	5/8	1,21	0,81	232,0	23,66	52.156	26,08	252,0	25,70	56.652	28,33
17		1,34	0,90	259,0	26,41	58.226	29,11	283,0	28,86	63.621	31,81
18		1,51	1,02	292,0	29,78	65.644	32,82	314,0	32,02	70.59	35,29
19	3/4	1,67	1,12	327,0	33,35	73.513	36,76	351,0	35,79	78.908	39,45
20		1,87	1,26	361,0	36,81	81.156	40,58	391,0	39,87	87.9	43,95
21		2,04	1,37	394,0	40,18	88.575	44,29	421,0	42,93	94.645	47,32
22		2,23	1,50	439,0	44,77	98.691	49,35	468,0	47,72	105.211	52,61
	7/8	2,25	1,51	449,0	45,79	100.939	50,47	478,0	48,74	107.459	53,73
23		2,44	1,64	478,0	48,74	107.459	53,73	511,0	52,11	114.877	57,44
24		2,66	1,78	514,3	52,44	115.619	57,81	556,0	56,70	124.994	62,50
25		2,84	1,91	566,0	57,72	127.242	63,62	602,0	61,39	135.335	67,67
	1	2,92	1,96	584,6	59,61	131.423	65,71	621,6	63,39	139.741	69,87
26		3,13	2,11	616,0	62,82	138.482	69,24	655,0	66,79	147.25	73,62
27		3,38	2,27	657,0	67,00	147.699	73,85	702,0	71,58	157.816	78,91
28		3,60	2,42	707,0	72,09	158.94	79,47	748,0	76,28	168.157	84,08
	1/8	3,79	2,55	736,5	75,10	165.572	82,79	779,2	79,46	175.171	87,59
29		3,87	2,60	760,0	77,50	170.855	85,43	807,0	82,29	181.421	90,71
30		4,15	2,79	813,0	82,90	182.77	91,38	871,0	88,82	195.809	97,90
31		4,44	2,98	869,0	88,61	195.359	97,68	930,0	94,83	209.072	104,54
32	1/4	4,75	3,19	938,0	95,65	210.871	105,44	988,0	100,75	222.111	111,06
33		5,06	3,40	979,0	99,83	220.088	110,04	1.059,0	107,99	238.073	119,04
34		5,36	3,60	1.055,0	107,58	237.173	118,59	1.114,0	113,60	250.437	125,22
35	13/8	5,66	3,81	1.113,9	113,59	250.415	125,21	1.175,7	119,89	264.308	132,15
36		5,95	4,00	1.164,0	118,70	261.678	130,84	1.242,0	126,65	279.213	139,61
38	11/2	6,68	4,49	1.301,0	132,67	292.476	146,24	1.395,0	142,25	313.608	156,80
40		7,40	4,97	1.438,0	146,64	323.275	161,64	1.552,0	158,26	348.903	174,45
	15/8	7,88	5,29	1.531,1	156,13	344.212	172,11	1.652,5	168,51	371.5	185,75
42		8,11	5,45	1.591,0	162,24	357.671	178,84	1.694,0	172,74	380.826	190,41
44		8,96	6,02	1.739,0	177,33	390.943	195,47	1.873,0	190,99	421.067	210,53
	3/4	9,08	6,10	1.775,5	181,05	399.148	199,57	1.911,0	194,87	429.61	214,80
46		9,78	6,57	1.916,0	195,38	430.734	215,37	2.042,0	208,23	459.06	229,53
48	17/8	10,65	7,16	2.079,0	212,00	467.378	233,69	2.225,0	226,89	500.2	250,10
50		11,57	7,77	2.265,0	230,97	509.192	254,60	2.423,0	247,08	544.712	272,36
	2	11,94	8,03	2.338,3	238,44	525.671	262,84	2.501,2	255,05	562.292	281,15
52		12,50	8,40	2.448,0	249,63	550.332	275,17	2.620,0	267,17	588.999	294,50
54	2 1/8	13,39	9,00	2.641,0	269,31	593.72	296,86	2.826,0	288,17	635.31	317,65
56		14,45	9,71	2.828,0	288,38	635.76	317,88	3.027,0	308,67	680.497	340,25
	21/4	15,01	10,09	2.945,4	300,35	662.152	331,08	3.153,2	321,54	708.867	354,43
58		15,43	10,37	3.022,0	308,16	679.372	339,69	3.234,0	329,78	727.032	363,52
60		16,55	11,12	3.242,0	330,60	728.83	364,42	3.469,0	353,74	779.862	389,93
	23/8	16,73	11,24	3.277,2	334,19	736.748	368,37	3.506,7	357,59	788.333	394,17
62		17,54	11,79	3.364,0	343,04	756.257	378,13	3.708,0	378,11	833.591	416,80
64	21/2	18,92	12,71	3.597,0	366,80	808.638	404,32	3.965,0	404,32	891.367	445,68
66		20,16	13,54	3.833,0	390,86	861.693	430,85	4.225,0	430,83	949.818	474,91
	25/8	20,57	13,82	3.911,8	398,90	879.408	439,70	4.311,9	439,69	969.345	484,67
68		21,35	14,35	4.055,0	413,50	911.6	455,80	-	-	-	-
70	23/4	22,51	15,13	4.281,0	436,54	962.407	481,20	-	-	-	-
72		23,86	16,03	4.538,0	462,75	1.020.183	510,09	-	-	-	-
