ปลอก ลวดสลิง Talurit Type R Ferrule

รายละเอียด และ ขนาด

Ends stops (R) are not allowed to use for lifting applications. The expected strength regarding this end-termination is approximately 50% of the MBL of the wire rope (informative only). Accordingly, verifying tests must be performed to secure the strength of the application.

General Description

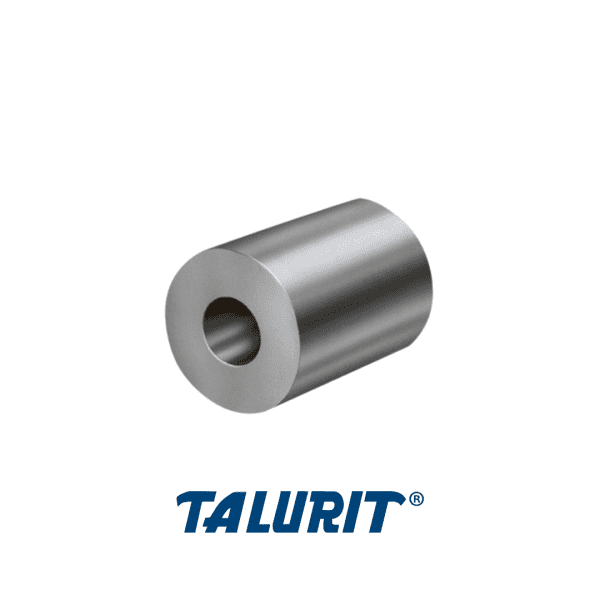

The R end stop is a round end stop made of Aluminium alloy, AW-5051A, same as for our T ferrules.

APPLICATIONS

Round aluminium ferrules are commonly used as end stops or as stoppers on bright or galvanized wire rope. The aluminium alloy is EN AW 5051A according to EN 573-3, and complies with material requirements in EN 13411-3. Same type of dies as for T ferrules are to be used.

TO BE NOTED

Round aluminium end stops are not recommended for use in high strength applications. The expected strength of this end stop is approx 50 percent of the MBL of the wire rope. Accordingly, verifying tests must be performed to secure the strength of the termination.


Rope Size		Wire Rope Capacity Diameter				Press Die Identification			Required Pressure Approximate
R	TCU	Fill Factor (F=0,4-0,5) Fiber Core		Fill Factor (F=0,5-0,6) Steel Core		Press die marked	Diameter after pressing
R	TCU	Min	Max	Min	Max	T	Diameter after pressing
mm	mm	mm	mm	mm	mm	mm	mm	Tol	kN
1		0,9	1,0	0,8	0,9	1	3	+0,2	10
1,5	1,5	1,1	1,5	1,0	1,4	1,5	3,8			20
2	2	1,6	2,0	1,5	1,9	2	4			30
2,5	2,5	2,1	2,6	2,0	2,5	2,5	5			45
3	3	3,1	2,5	2,8	3	3	6			60
3,5	3,5	3,6	2,9	3,3	3,5	7	7			80
4	4	3,7	4,1	3,4	3,8	4	8			100
4,5	4,5	4,6	3,9	4,2	4,5	9	9			125
5	5	4,7	5,1	4,3	4,7	5	10			180
6	6	5,2	6,1	4,8	5,6	6	12	+0,4	210
6,5	6,5	6,2	6,6	5,7	6,1	6,5	13			250
7	7	6,7	7,1	6,2	6,6	7	14			320
8	8	72	8,2	6,7	7,5	8	15			410
9	9	8,3	9,0	7,6	8,2	9	18			500
10	10	9,1	10,1	8,3	9,2	10	20	+0,5	600
11	11	10,2	11,2	9,3	10,2	11	22			720
12	12	11,3	12,3	10,3	11,2	12	24			850
13	13	12,4	13,4	11,3	12,2	13	26			1000
14	14	13,5	14,5	12,3	13,2	14	28	+0,5	1300
16	16	14,6	16,1	13,3	14,7	16	32	+0,5		1600
18	18	16,2	18,2	14,8	16,6	18	36	+0,9	2000
20	20	18,3	20,2	16,7	18,4	20	40			2400
22	22	20,3	22,4	18,5	20,4	22	44			2900
24	24	22,5	24,6	20,5	22,5	24	48	+1,1	3400
26		24,7	26,9	22,6	24,6	26	52			3900
28		27,0	28,6	24,7	26,1	28	56			4500
30		28,7	30,8	26,2	28,1	30	60	+1,4	5100
32		30,9	32,7	28,2	29,9	32	64	+1,4		5800
