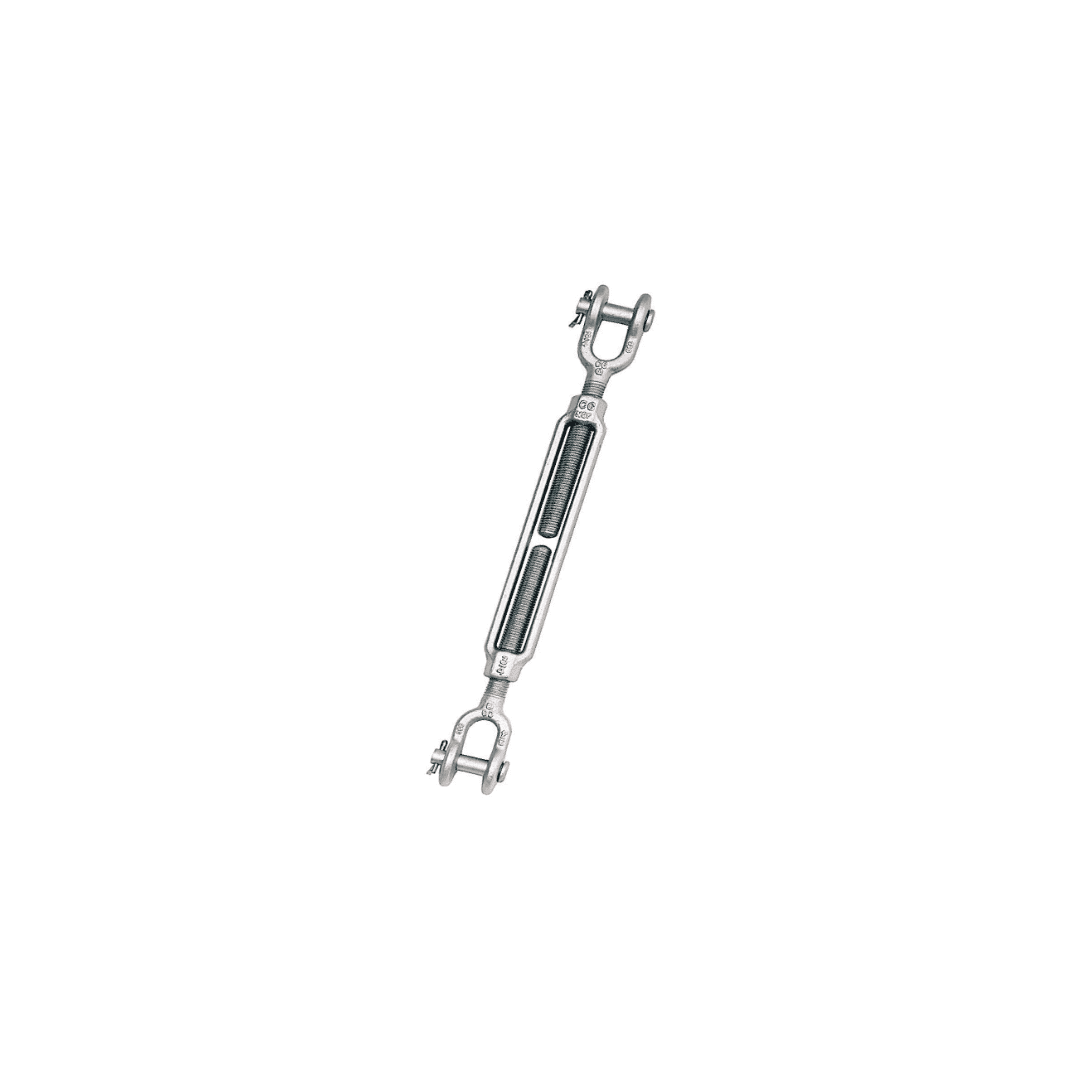

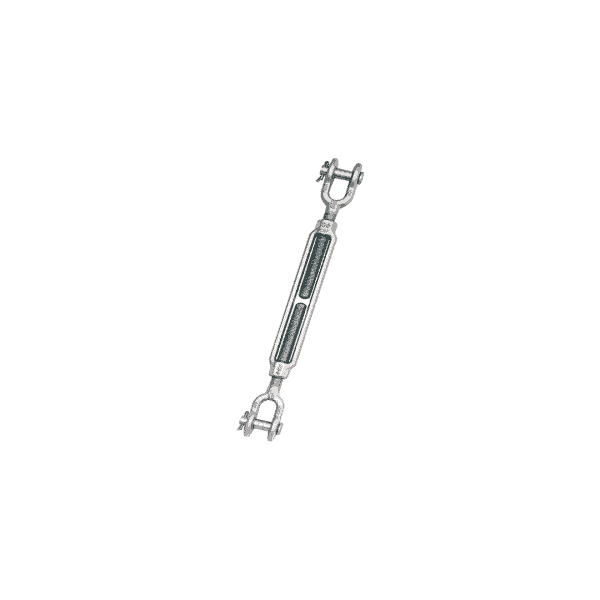

เกลียวเร่ง Jaw & Jaw Turnbuckles

Name: เกลียวเร่ง Jaw & Jaw Turnbuckles - ไทยมุ้ย THAIMUI
Brand: THAIMUI
Price: 100.00 THB
Availability: InStock

หมวดหมู่: เกลียวเร่ง (Turnbuckle), THAIMUI

เกลียวเร่ง Jaw & Jaw Turnbuckles

รายละเอียด และ ขนาด

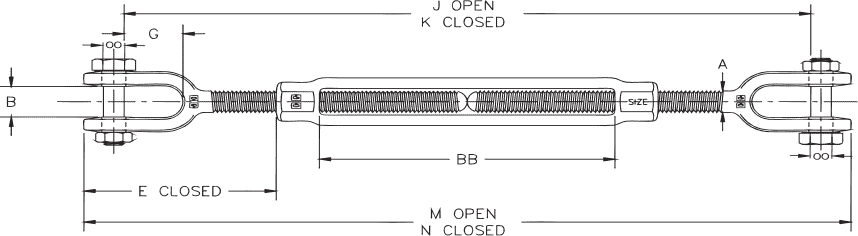

Thread Diameter & Take Up	Working Load Limit	Weight Each	Dimensions
Thread Diameter & Take Up	Working Load Limit	Weight Each	A	B	E Closed	G	J Open	K Closed	M Open	N Closed	BB
mm	t	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm
t 6.35 x 102	0.23	0.17	6.35	11.4	42.0	16.1	284	183	309	208	103
t 7.94 x 114	0.36	0.25	7.94	12.7	51.2	22.0	332	218	359	244	116
t 9.53 x 152	0.54	0.39	9.53	13.5	53.5	21.5	413	260	445	292	155
12.7 x 152	1.00	0.83	12.7	16.3	81.8	27.1	474	321	512	359	153
12.7 x 229	1.00	1.04	12.7	16.3	81.3	27.1	633	405	671	443	238
12.7 x 305	1.00	1.23	12.7	16.3	81.3	27.1	786	481	824	519	314
15.9 x 152	1.59	1.46	15.9	20.1	99.1	33.5	501	349	554	402	153
15.9 x 229	1.59	1.79	15.9	20.1	98.8	33.5	662	434	715	487	239
15.9 x 305	1.59	2.08	15.9	20.1	98.8	33.5	815	510	868	563	315
19.1 x 152	2.36	2.18	19.1	24.6	120	38.5	536	383	601	449	156
19.1 x 229	2.36	2.65	19.1	24.6	119	38.5	698	470	764	535	244
19.1 x 305	2.36	3.05	19.1	24.6	119	38.5	851	546	916	612	320
19.1 x 457	2.36	3.83	19.1	24.6	120	38.5	1155	698	1221	764	471
22.2 x 305	3.27	4.25	22.2	29.5	140	44.8	880	575	956	651	309
22.2 x 457	3.27	5.34	22.2	29.5	140	44.8	1197	740	1272	815	473
25.4 x 152	4.54	4.74	25.4	34.0	155	52.1	605	453	690	538	157
25.4 x 305	4.54	6.25	25.4	34.0	155	52.1	910	605	995	690	309
25.4 x 457	4.54	7.77	25.4	34.0	155	52.1	1215	757	1300	843	462
25.4 x 610	4.54	9.51	25.4	34.0	154	52.1	1535	925	1620	1010	631
31.8 x 305	6.89	9.94	31.8	46.7	205	71.5	1000	695	1107	802	306
31.8 x 457	6.89	11.7	31.8	46.7	205	71.5	1305	848	1412	955	459
31.8 x 610	6.89	13.5	31.8	46.7	205	71.5	1624	1014	1731	1121	625
38.1 x 305	9.71	14.8	38.1	52.3	227	71.4	1035	731	1160	855	313
38.1 x 457	9.71	17.2	38.1	52.3	227	71.4	1340	883	1465	1008	465
38.1 x 610	9.71	19.7	38.1	52.3	227	71.4	1661	1051	1786	1176	633
44.5 x 457	12.7	24.3	44.5	66.0	238	85.0	1355	898	1503	1045	467
44.5 x 610	12.7	27.7	44.5	66.0	238	85.0	1660	1050	1807	1198	619
51.0 x 610	16.8	43.7	50.8	66.5	300	95.0	1769	1159	1949	1339	622
63.5 x 610	27.2	75.9	63.5	77.7	337	113	1853	1244	2087	1478	625
70.0 x 610	34.0	90.1	69.9	93.7	379	106	1899	1289	2172	1562	626
